TRIFT®
3.5mm 1/3 Tubular Plate System

TRIFT®

3.5mm 1/3 Tubular Plate System

Trift 3 holesTrift 11 holesTrift 9 holesTrift 3 holes

The TRIFT®3.5mm 1/3 Tubular Plate

trift description

1

2

3

NON-LOCKING HOLES

For use with cortical screws

COLLAR

Ensuring plate pressure on the bone

1/3 TUBUS

Optimized for metaphyseal anatomies

THE TRIFT®

plate

13 Hole | 160mm length

plate

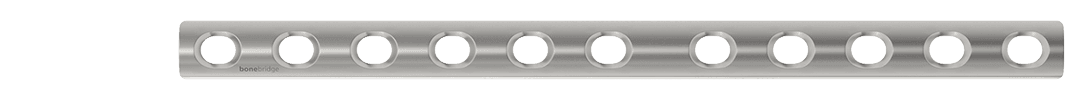

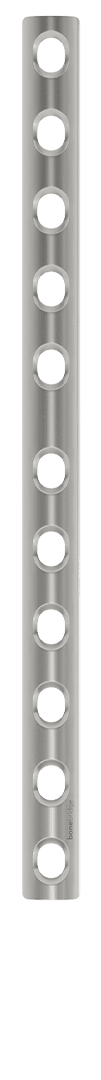

11 Hole | 136mm length

plate

9 Hole | 112mm length

plate

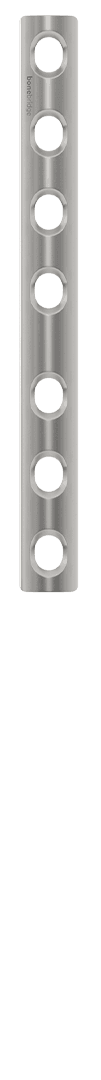

7 Hole | 88mm length

plate

5 Hole | 64mm length

plate

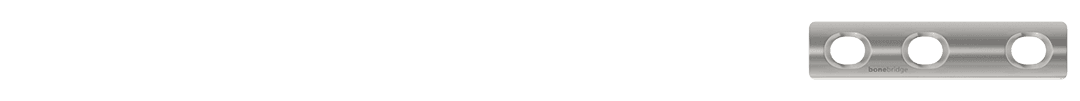

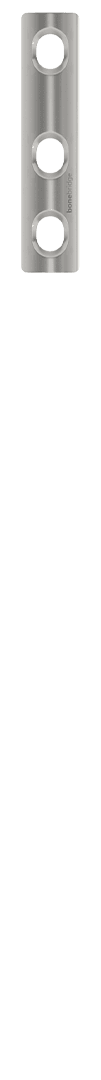

3 Hole | 40mm length

  • “The Trift 1/3 Tubular plate has served thousands of patients for decades. It is a simple, versatile and cheap implant that still serves as a workhorse in the treatment of malleolar fractures and many other patterns in smaller bones. We feel the plate reflects nicely on our basic principles of keeping it as simple as possible. As for reducing complexity - the Trift 1/3 tubular plate is an exemplary representative.”

    Christof Gerber M.D.

    CEO Bonebridge

    bridge

    A LEGEND REVIVED

    src

    The 1/3 Tubular plate was developed more than 40 years ago by the AO/ASIF group of surgeons. It has ever since served as a workhorse for operative fixation of fractures of the lateral malleolus, the distal ulna, the olecranon, the metatarsals and other small bones. Straightforward, proven, zero complexity.

    A LITTLE MORE

    src

    With the Swiss made 1/3 Tubular plate, Bonebridge offers its customers an efficient and cost-effective extension to its 3.5mm portfolio of plates. Wherever in fracture care an additional 1/3 Tubular plate may be of value — it is available.

    ONE SHAPE, MANY SIZES

    src

    TRIFT Plates are available with 3, 5, 7, 9, 11 and 13 holes to cover the possible indications.

    A LEGEND REVIVED

    The 1/3 Tubular plate was developed more than 40 years ago by the AO/ASIF group of surgeons. It has ever since served as a workhorse for operative fixation of fractures of the lateral malleolus, the distal ulna, the olecranon, the metatarsals and other small bones. Straightforward, proven, zero complexity.

    A LITTLE MORE

    With the Swiss made 1/3 Tubular plate, Bonebridge offers its customers an efficient and cost-effective extension to its 3.5mm portfolio of plates. Wherever in fracture care an additional 1/3 Tubular plate may be of value — it is available.

    ONE SHAPE, MANY SIZES

    TRIFT Plates are available with 3, 5, 7, 9, 11 and 13 holes to cover the possible indications.

    IF YOU HAVE ANY QUESTIONS ABOUT A CASE PLEASE GET IN TOUCH WITH US!

    THE TRIFT 3.5MM INSTRUMENT SET

    toolstoolstoolstoolstoolstoolstoolstoolstoolstools
    slide-img

    SCREWDRIVER 3.5MM

    The screw driver has a tapered star-shaped tip for screw attachment with self-retaining capacity.

    slide-img

    SCREWDRIVER 3.5MM

    The screw driver has a tapered star-shaped tip for screw attachment with self-retaining capacity.

    slide-img

    EXCHANGEABLE BIT 3.5MM, 100MM & 180MM

    The exchangeable bits have a tapered star-shaped tip for screw attachment with self-retaining capacity for both the Cortical & VA Locking Screws.

    slide-img

    DRILL BIT Ø2.8MM, 120MM & 220MM

    The Ø2.8mm Drill Bit is required for the 3.5mm Cortical screws & is available in two lengths (120mm & 220mm).

    slide-img

    DRILL BIT Ø3.5MM, 120MM

    The ø3.5mm Drill Bit is used to drill glide holes when preparing the placement of a lag screw.

    slide-img

    K-WIRE Ø1.8MM, 250MM

    Used for preliminary fixation of fracture reduction and temporary fixation of the plate.

    slide-img

    DEPTH GAUGE 3.5MM

    Screw measurement instrument for 3.5mm Cortical Screws.

    slide-img

    LAG SCREW DRILL GUIDE Ø3.5MM

    Drill Bit ø3.5mm used to drill glide holes when preparing the placement of a lag screw.

  • 3.5MM SCREWS

    screw1screw2
    slide-img
  • Cortical Screws

    Thanks to a consistent diameter throughout the system, our 3.5mm Cortical Screws can be placed in all Screw holes. For the TRIFT plates, the Cortical Screws are available in sizes from 10-60mm with an increment of 2mm up to screw lenghts of 50mm. Beyond 50mm the increment is 5mm.
