POYA®-L & POYA®-P
3.5mm Proximal Tibia System

POYA®-L & POYA®-P

3.5mm Proximal Tibia System

PoyaPoya

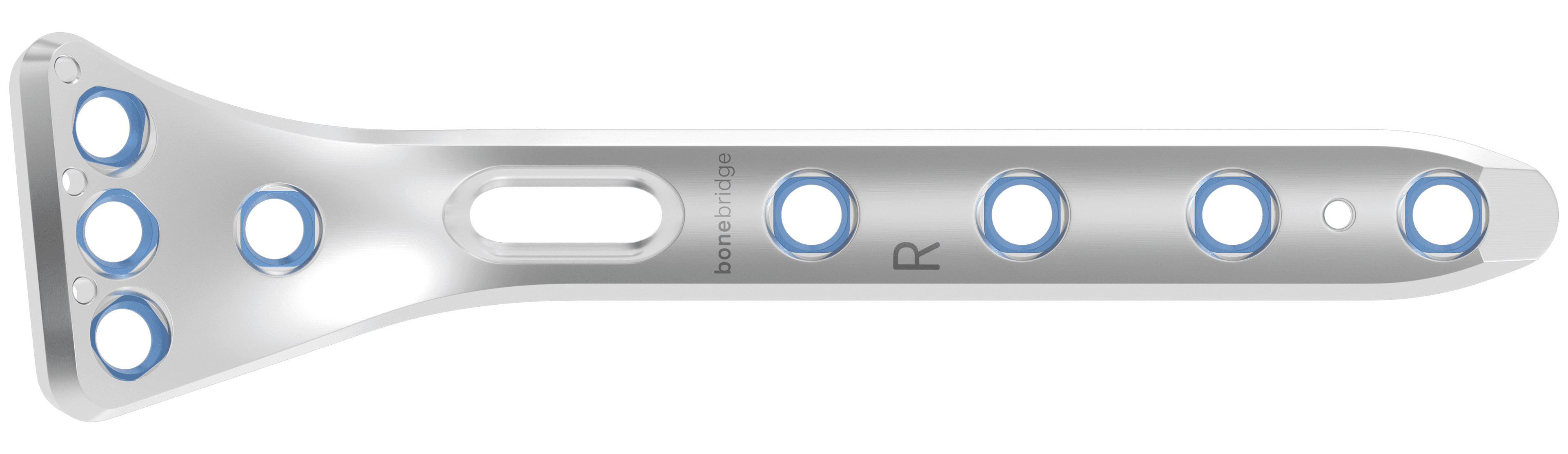

The POYA®3.5mm Lateral Proximal Tibia Plate

poya description

1

2

3

4

5

SUTURE HOLES

For attachment of sutures

PRECONTOURED SHAPE

To fit the posteromedial proximal tibia

OBLONG HOLE

Allowing precise positioning of the plate

TIC™ HOLES

Variable angle locking holes (15° angulation)

KIRSCHNER WIRE HOLES

For preliminary plate fixation

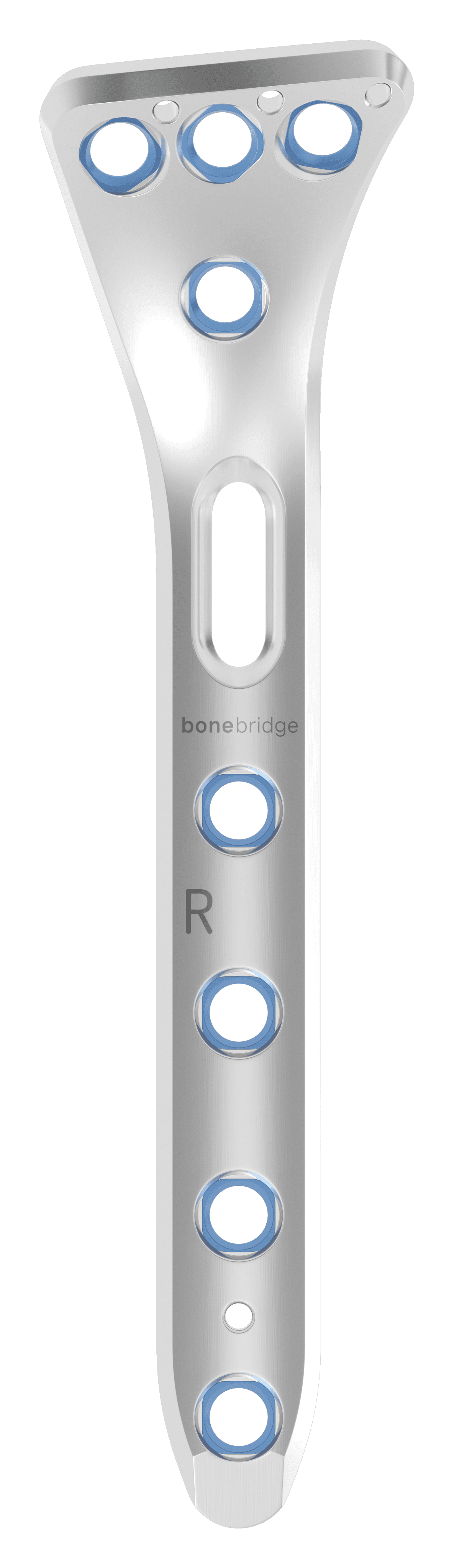

THE POYA®-L

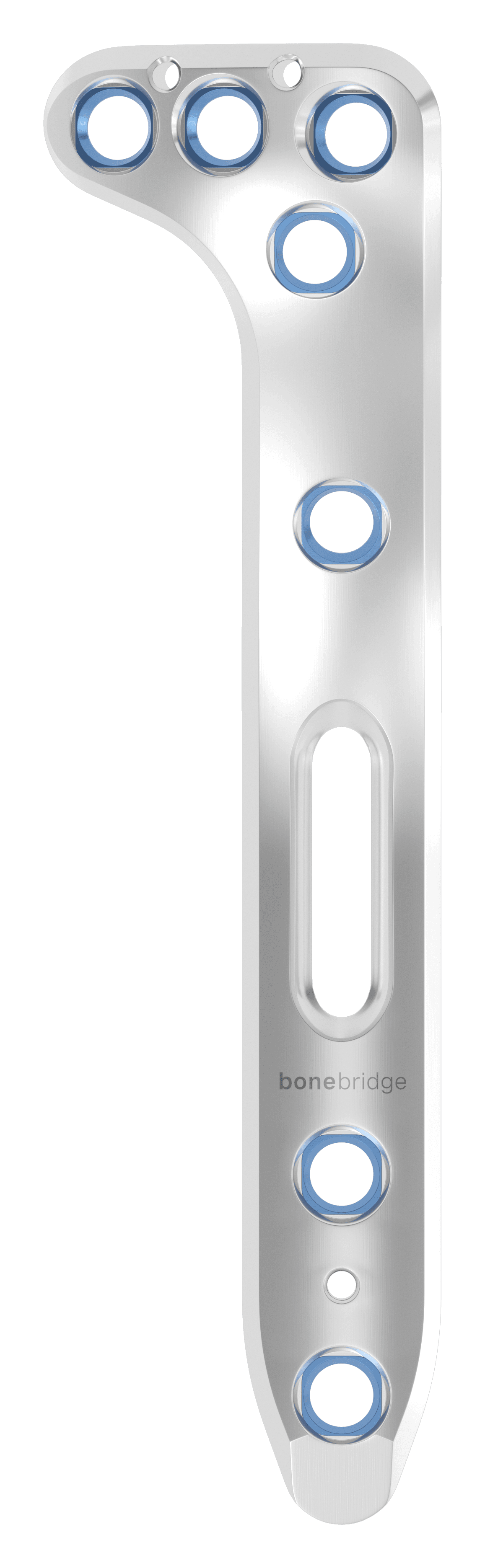

THE POYA®-P

plate

POYA-L | 108mm length

plate

POYA-P | 105mm length

“The design of the lateral Poya plate fits the anatomy of the tibial head very well and contouring - although rarely needed - is easy. The proximal screw row can be inserted very close to the articular surface into the subchondral bone to deliver improved stability even without filling the osseous defect. The configuration of the TIC holes allows an optimal support of the lateral plateau including its most dorsal aspects.”

Prof. Dr. Christoph Meier

Director of Orthopaedic Trauma, Department of Orthopaedics and Traumatology

Kantonsspital Winterthur, Switzerland

bridge

SMART TRAJECTORIES

src

The nominal screw trajectories proximally on the POYA-L plate provide for a fan-shaped positioning of the screws into the tibial plateau. Additionally, the TIC screw holes enable maximum flexibility for screw placement using variable angle locking technology.

REDUCED TO THE MAX

src

POYA-L and POYA-P are available in one plate shape to respect the principle of reducing complexity. The shape is designed to fit a broad range of individual anatomical properties and to cover a large variety of possible fracture patterns.

BUTTRESS AND FIXATE

src

The contoured design of the POYA-P plate head allows for effective adaptation to the posteromedial aspect of the proximal tibia, in order to buttress fragments at a safe distance from the joint line.

SMART TRAJECTORIES

The nominal screw trajectories proximally on the POYA-L plate provide for a fan-shaped positioning of the screws into the tibial plateau. Additionally, the TIC screw holes enable maximum flexibility for screw placement using variable angle locking technology.

REDUCED TO THE MAX

POYA-L and POYA-P are available in one plate shape to respect the principle of reducing complexity. The shape is designed to fit a broad range of individual anatomical properties and to cover a large variety of possible fracture patterns.

BUTTRESS AND FIXATE

The contoured design of the POYA-P plate head allows for effective adaptation to the posteromedial aspect of the proximal tibia, in order to buttress fragments at a safe distance from the joint line.

IF YOU HAVE ANY QUESTIONS ABOUT A CASE PLEASE GET IN TOUCH WITH US!

THE POYA 3.5MM INSTRUMENT SET

toolstoolstoolstoolstoolstoolstoolstoolstoolstoolstools
slide-img

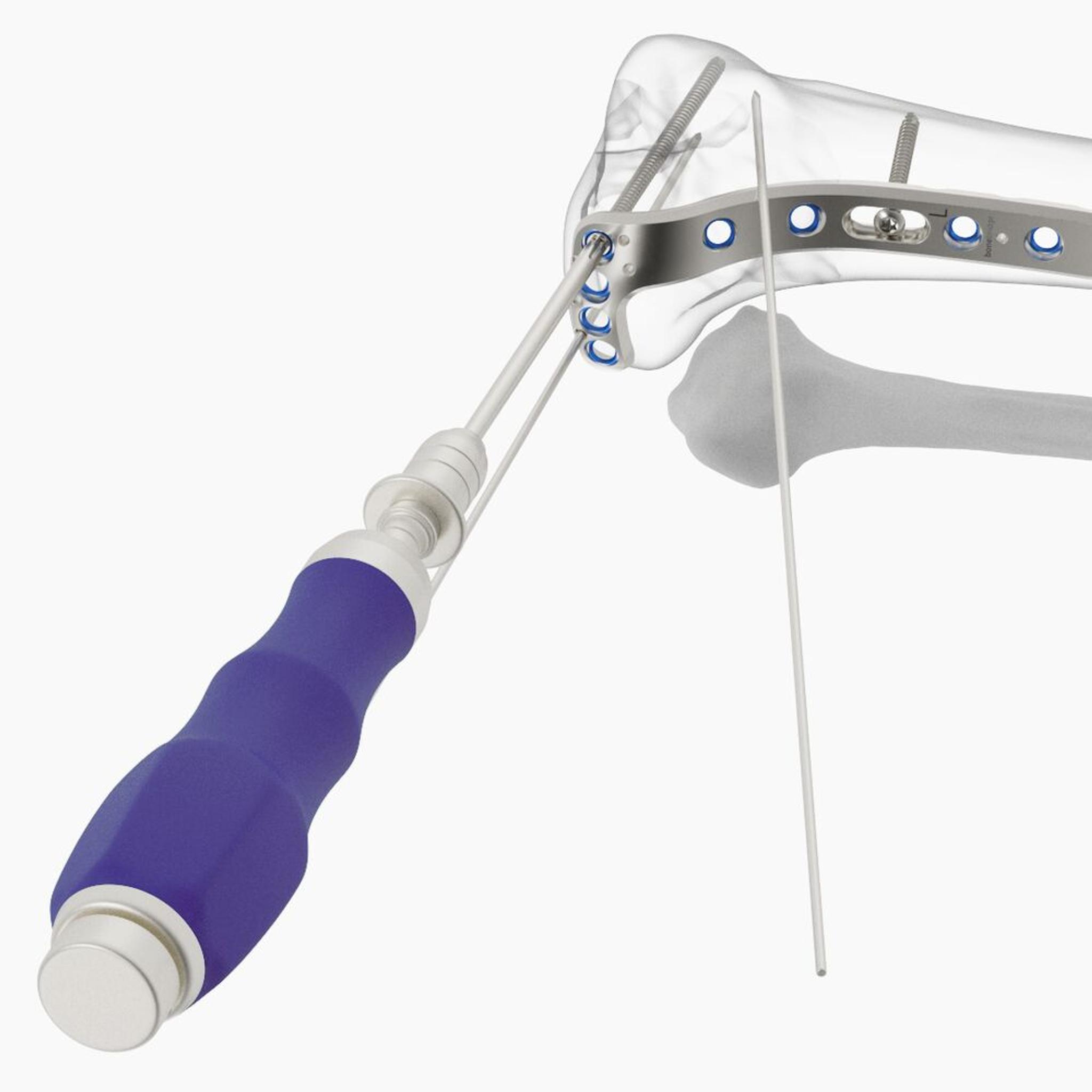

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

POWER TOOL TL ATTACHMENT Ø3.5MM

Torque limiter attachment connects with a power tool and exchangeable bit for final tightening of 3.5mm VA Locking Screws.

slide-img

EXCHANGEABLE BIT Ø3.5MM, 100MM & 180MM

The exchangeable bit has a tapered star-shaped tip for screw attachment with self-retaining capacity. It accepts both the 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL BIT Ø2.8MM, 120MM & 220MM

Only one drill bit (ø2.8mm) is required for both the 3.5mm Cortical screws and 3.5mm VA Locking screws. The drill bit is available in two lengths (120mm & 220mm).

slide-img

K-WIRE Ø1.8MM, 250MM

Used for preliminary fixation of fracture reduction and temporary fixation of the plate.

slide-img

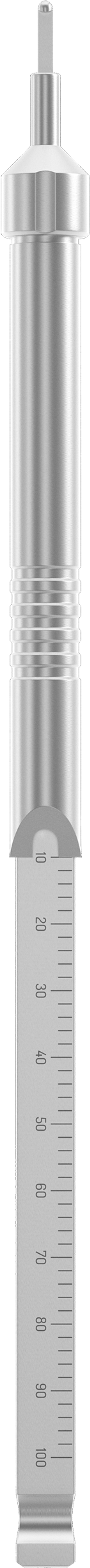

DEPTH GAUGE Ø3.5MM

Screw measurement instrument for 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL GUIDE Ø3.5MM

Drill guide to be used with 3.5mm Cortical and 3.5mm VA Locking screws. The variable angle cone allows for up to 15° of angulation. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

MONOAXIAL DRILL GUIDE Ø3.5MM

Straight drill guide for drilling of 3.5mm screw holes. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

BENDING IRON

Used for plate contouring when minor adaptions are required to match patient anatomy.

  • 3.5MM SCREWS

    screw1screw2
    slide-img
  • Variable Angle Locking Screws

    Thanks to the TIC™-technology our 3.5mm Variable Angle Locking Screws can be locked with an audible click to the TIC™-Screw holes. Using the same diameter as the Cortex Screws only one screw driver is necessary in the OR. For the POYA plates, the VA Locking Screws are available in lengths from 10-90mm with an increment of 2mm for screw lengths up to 60mm and an increment of 5mm until 90mm.

    slide-img
  • Cortex Screws

    Thanks to a consistent diameter throughout the system, our 3.5mm Cortex Screws can be placed in all TIC™-Screw holes. For the POYA plates, the Cortex Screws are available in lengths from 10-90mm with an increment of 2mm for screw lengths up to 50mm and an increment of 5mm until 90mm.
