SALGINA®
2.5mm Volar Distal Radius System

SALGINA®

2.5mm Volar Distal Radius System

SalginaSalgina

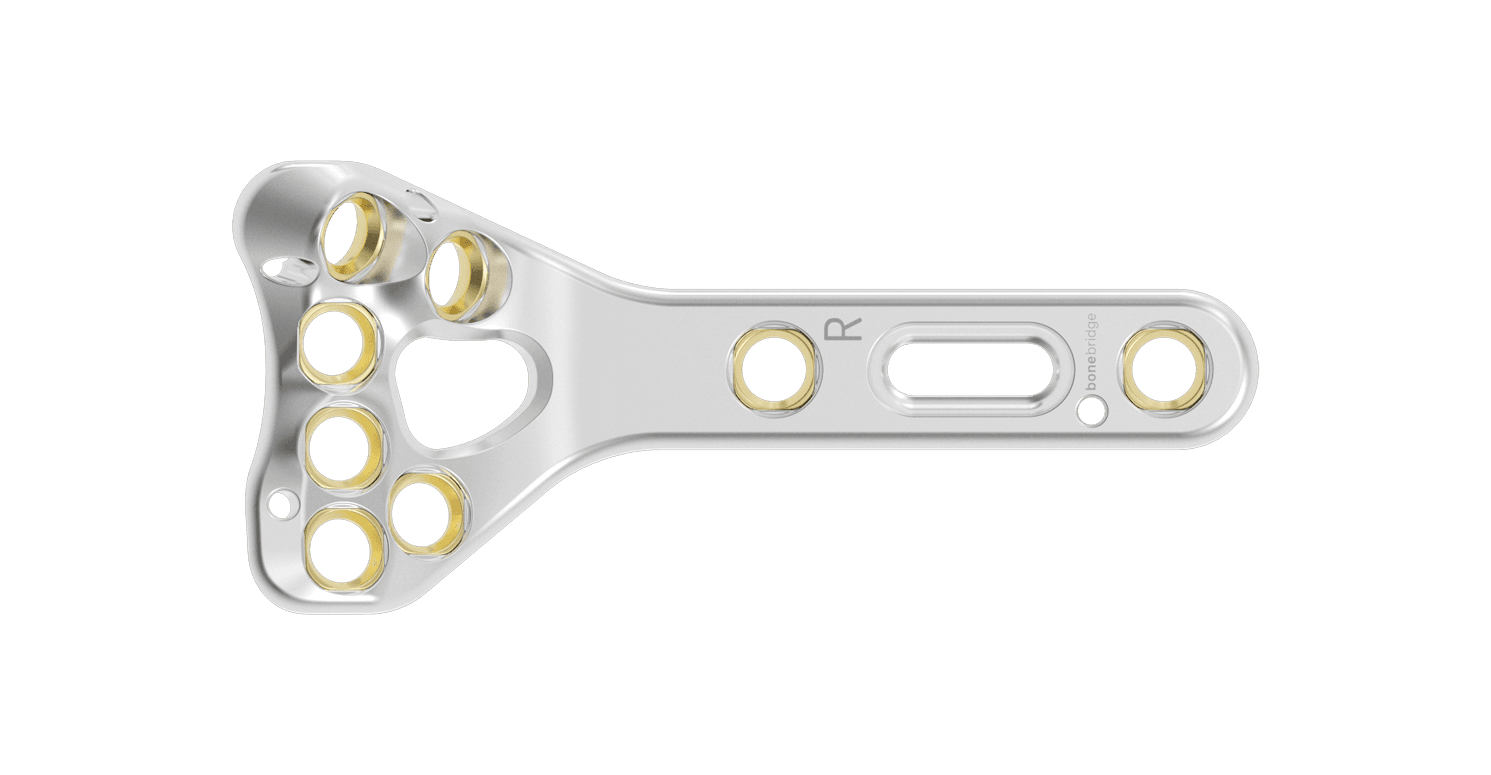

The SALGINA®2.5mm Volar Distal Radius Plate

salgina description

1

2

3

4

Y-SHAPE

Permitting protection of the FPL tendon

OBLONG HOLE

Allowing precise positioning of the plate

KIRSCHNER WIRE HOLES

For preliminary plate fixation

TIC™ HOLES

Variable angle locking holes (15° angulation)

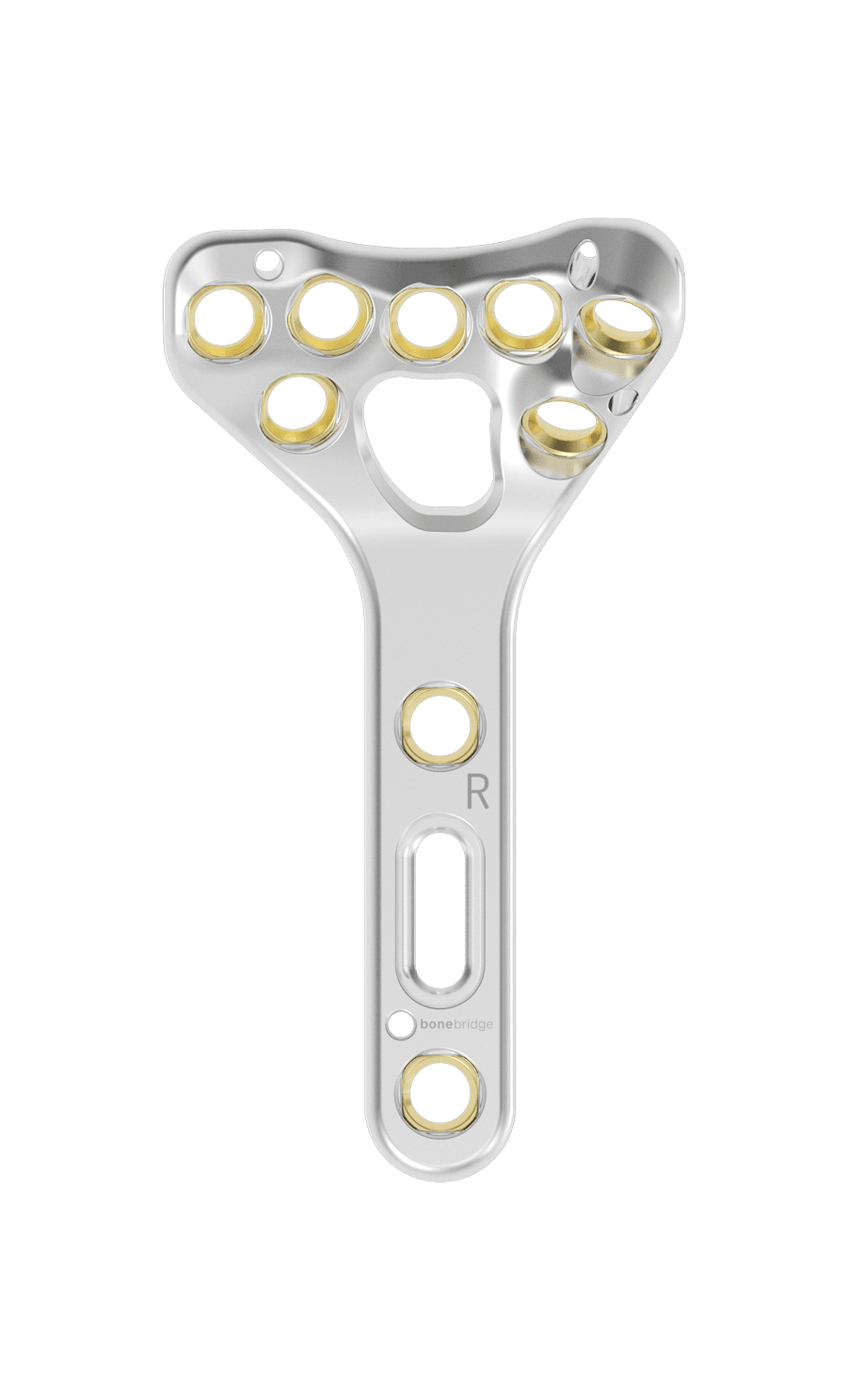

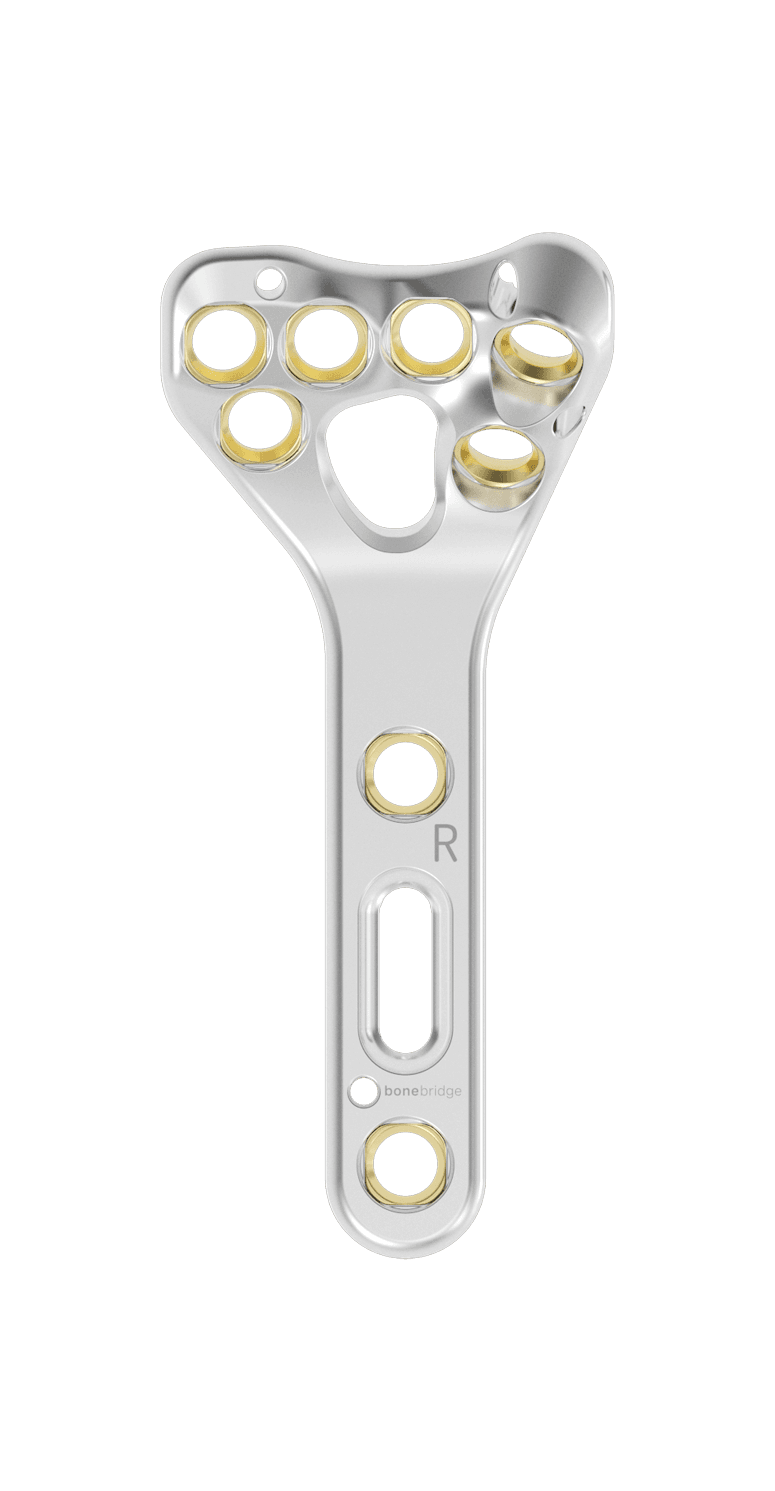

SALGINA®

plate

Narrow 2 Hole | Length 52mm

plate

Wide 2 Hole | Length 52mm

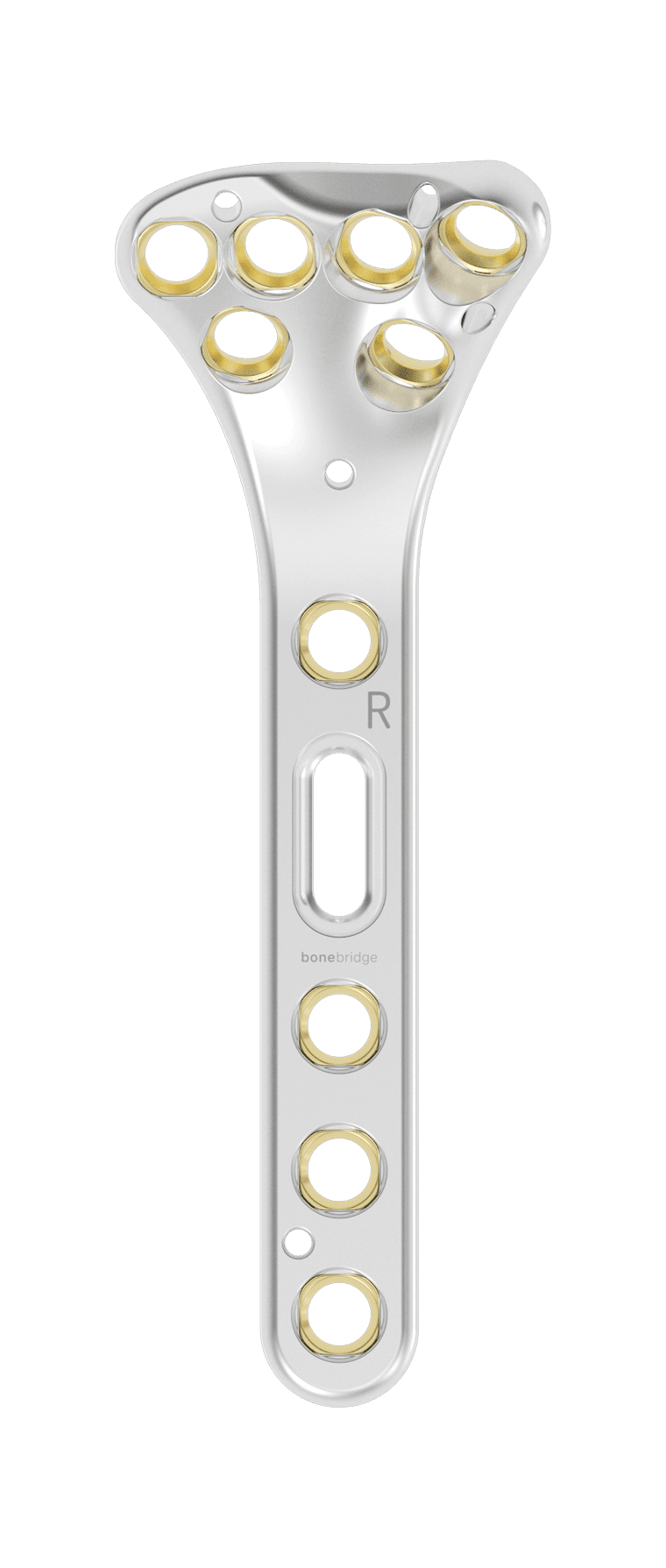

SALGINA® LONG

plate

Narrow 5 Hole | Length 75mm

plate

Wide 5 Hole | Length 75mm

“The Salgina Distal Radius plate is an outstanding solution to cover the vast majority of distal radius fractures in a trauma center like ours. The plate allows for optimal placement of all its distal screws in the ulnar and radial column and thus not only serves as our workhorse plate but its simplicity and minimised instrumentation also makes it an excellent choice for our OR staff.”

Beat Moor M.D.

Chair Department of Orthopaedics,

Hôpitaux du Valais, Sion/Martigny, Switzerland

bridge

THE Y-SHAPE

src

The Y-shape allows for better intraoperative visibility of the fracture zone, easy adaption of the plate’s ulnar and radial aspect and postoperative protection of the FPL tendon.

THE SECOND ROW

src

The plate is designed to allow optimal subchondral positioning of all distal screws. This includes the possibility to position screws from the second row subchondrally and thus reliably place 5 screws (narrow plate) or 6 screws (wide plate) optimally.

TWO LENGTHS, TWO WIDTHS

src

We keep our products as simple as possible while still covering the largest possible range of fractures.

THE Y-SHAPE

The Y-shape allows for better intraoperative visibility of the fracture zone, easy adaption of the plate’s ulnar and radial aspect and postoperative protection of the FPL tendon.

THE SECOND ROW

The plate is designed to allow optimal subchondral positioning of all distal screws. This includes the possibility to position screws from the second row subchondrally and thus reliably place 5 screws (narrow plate) or 6 screws (wide plate) optimally.

TWO LENGTHS, TWO WIDTHS

We keep our products as simple as possible while still covering the largest possible range of fractures.

IF YOU HAVE ANY QUESTIONS ABOUT A CASE PLEASE GET IN TOUCH WITH US!

THE SALGINA 2.5MM INSTRUMENT SET

toolstoolstoolstoolstoolstoolstoolstools
slide-img

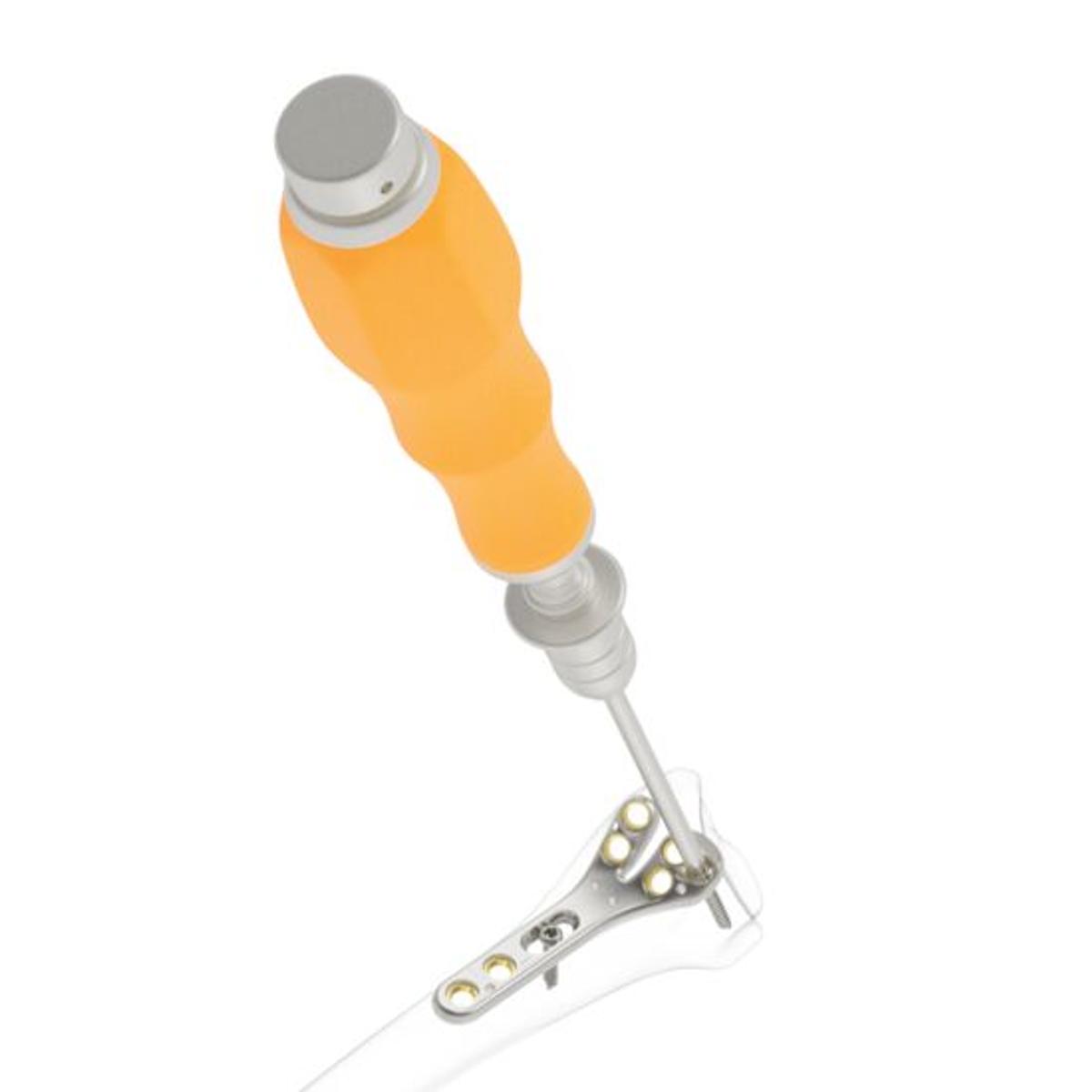

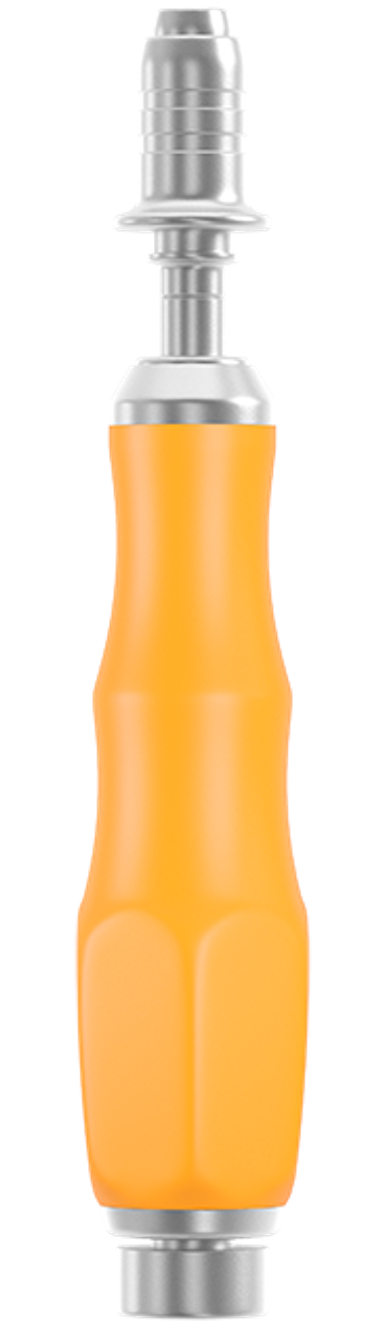

Torque Limiting Screwdriver Handle ø2.5mm

Provides a tactile and audible ‘click’ to confirm final tightening of 2.5mm VA Locking screws.

slide-img

Torque Limiting Screwdriver Handle ø2.5mm

Provides a tactile and audible ‘click’ to confirm final tightening of 2.5mm VA Locking screws.

slide-img

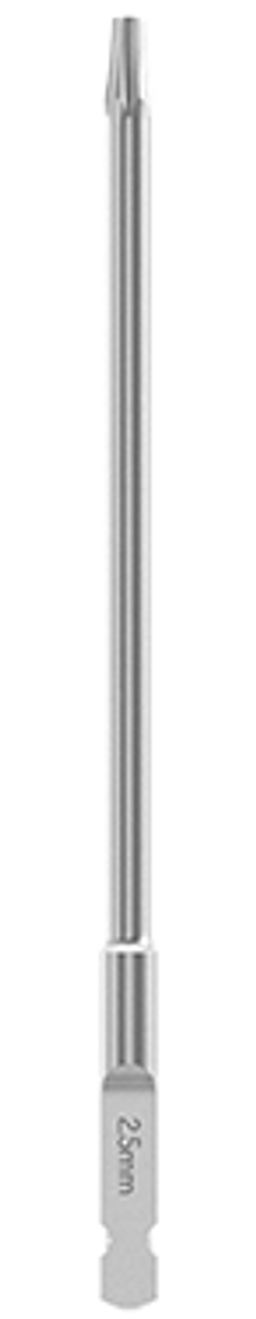

Exchangeable Bit ø2.5mm

The screw driver shaft has a star-shaped and tapered tip for optimal screw attachment and self-holding capacity. It accepts both the 2.5mm Cortex Screws and 2.5mm VA Locking Screws.

slide-img

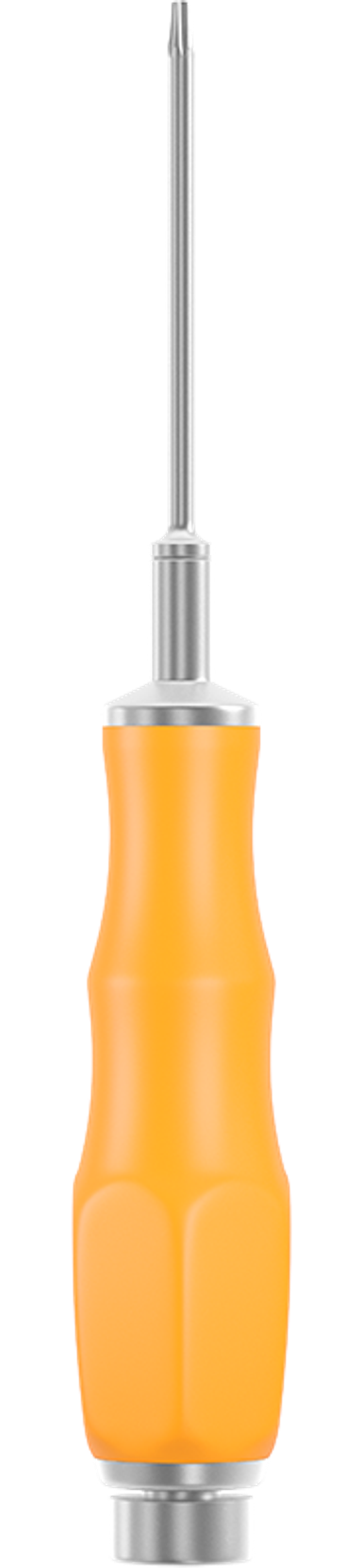

Screwdriver

The screw driver has a star-shaped and tapered tip for optimal screw attachment and self-holding capacity. It accepts both the 2.5mm Cortex Screws and the 2.5mm VA Locking Screws.

slide-img

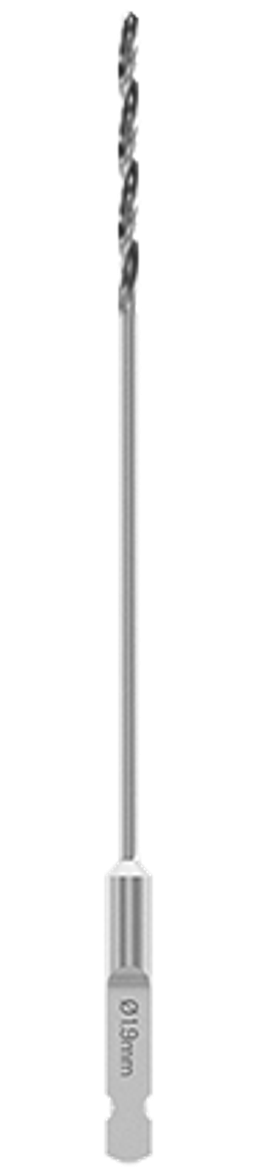

Drill Bit ø1.9mm

Only one drill bit is required for both the 2.5mm Cortex screws and the 2.5mm VA-Locking screws.

slide-img

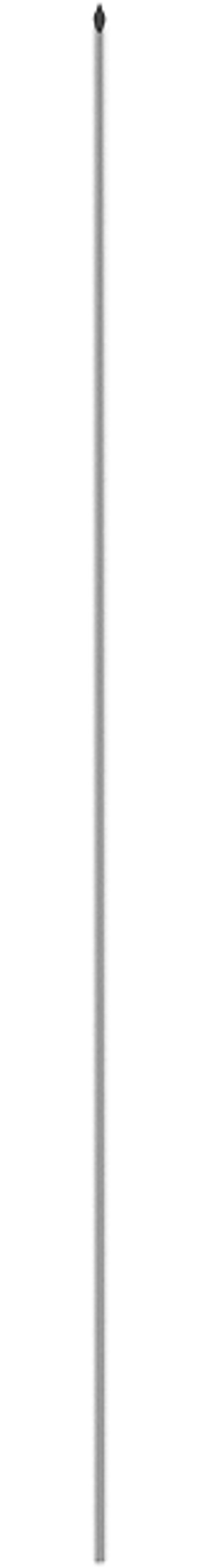

K-Wire ø1.4mm, 150mm

Used for preliminary fixation during fracture reduction and temporary fixation of the plate.

slide-img

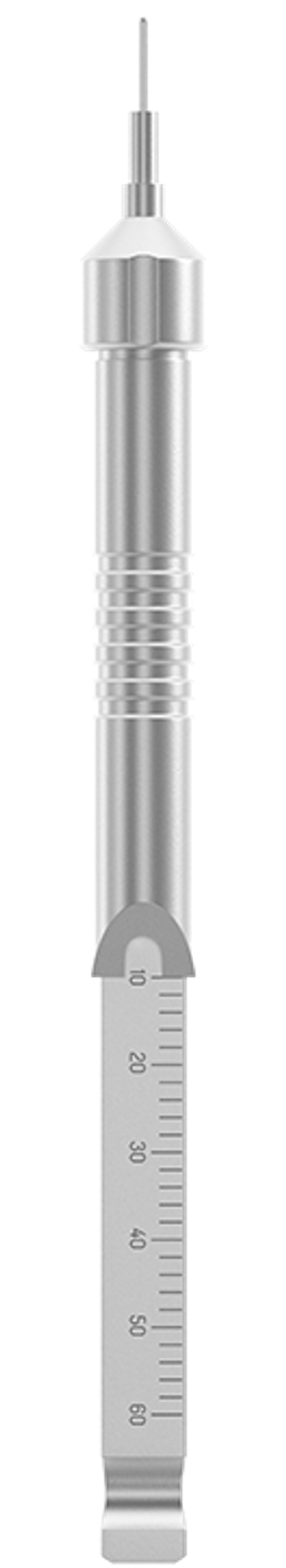

Depth Gauge ø2.5mm

Screw measurement instrument for 2.5mm Cortex Screws and 2.5mm VA Locking Screws.

slide-img

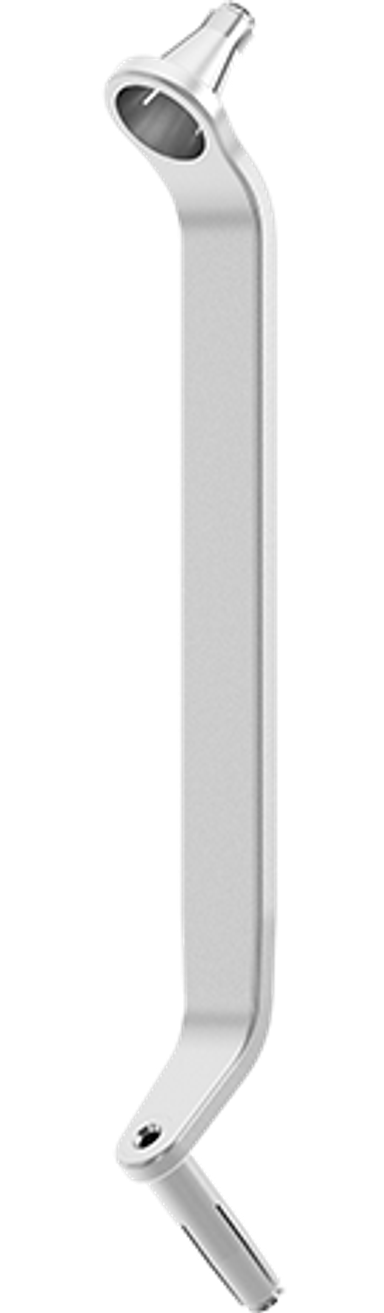

Drill Guide ø2.5mm

Positioning guide and tissue protector used for the drilling of 2.5mm Cortex and 2.5mm VA Locking screws. The variable angle cone allows for up to 15 degrees of angulation. A tactile ’click’ confirms connection to the TIC hole and includes a self-holding feature.

slide-img

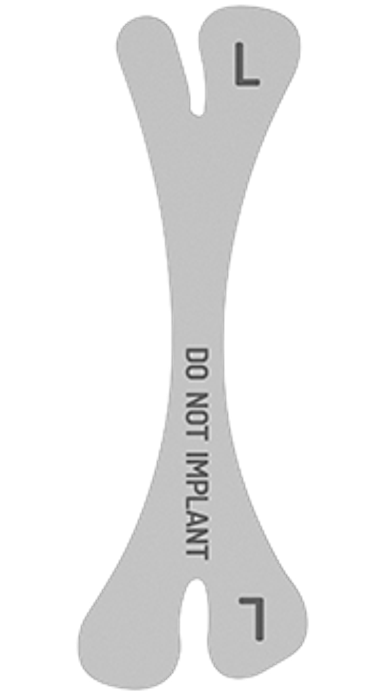

SALGINA Trial Implant

Allows for proper intra-operative determination of SALGINA plate width.

  • 3.5MM SCREWS

    screw1screw2
    slide-img
  • Variable Angle Locking Screws

    Thanks to the TIC™-technology our 2.5mm Variable Angle Locking Screws can be locked with an audible click to the TIC™-Screw holes. Using the same diameter as the Cortical Screws only one screw driver is necessary in the OR. For the SALGINA plates, the VA Locking Screws are available in lengths from 10-30mm with an increment of 2mm.

    slide-img

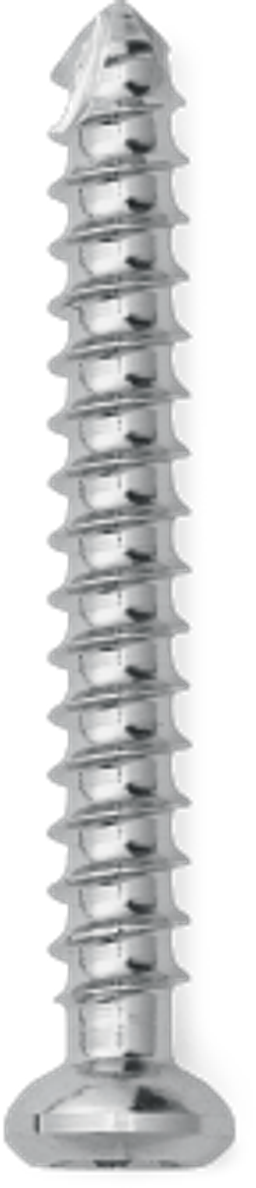

  • Cortical Screws

    Thanks to a consistent diameter throughout the system, our 2.5mm Cortical Screws can be placed in all TIC™-Screw holes. For the SALGINA plates, the Cortical Screws are available in lengths from 10-30mm with an increment of 2mm.

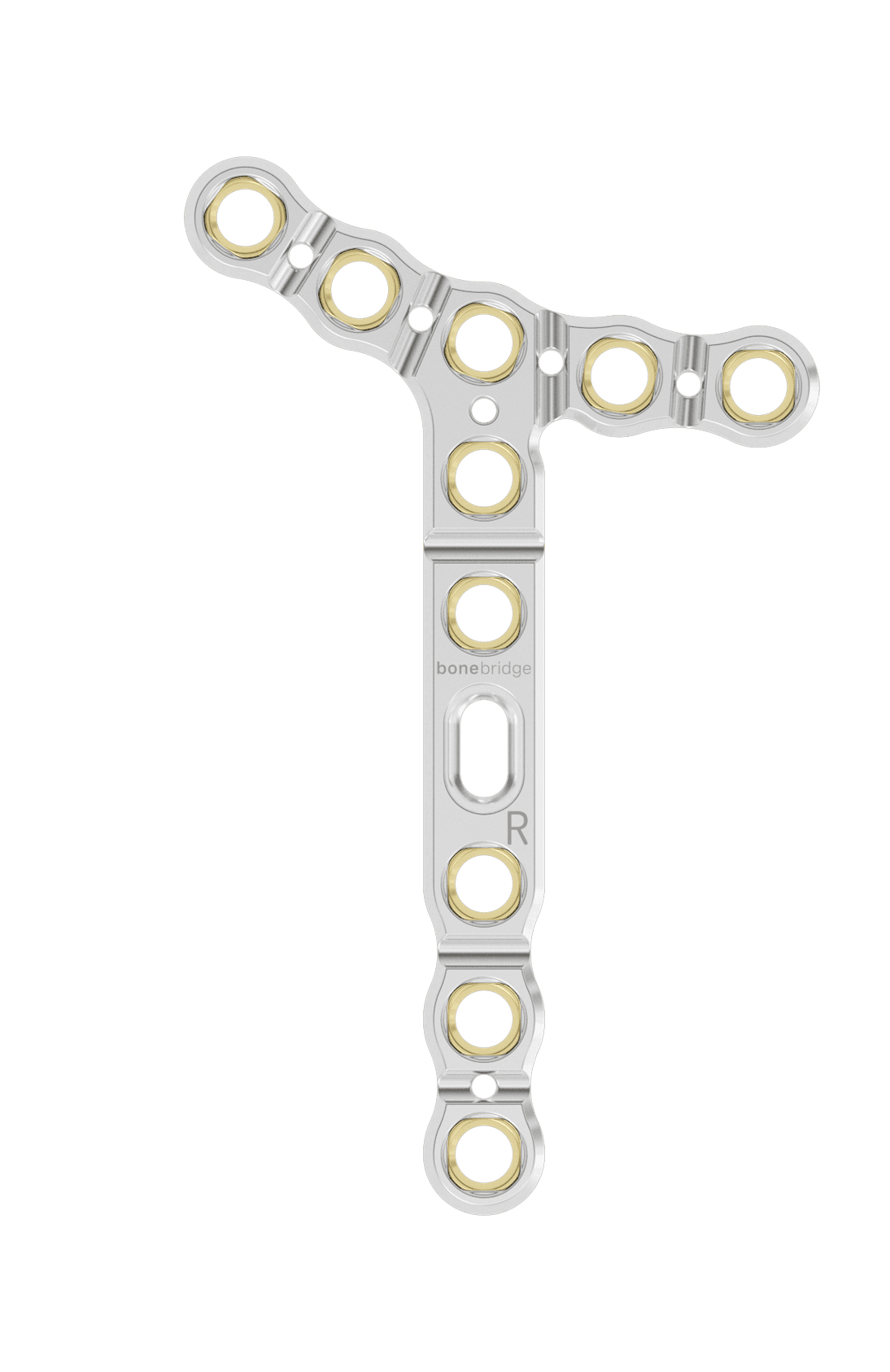

  • More Bonebridge products
