CASCELLA®
3.5mm Superior Clavicle System

CASCELLA®

3.5mm Superior Clavicle System

Cascella Lat LongCascella Lat Long

The CASCELLA®3.5mm Superior Clavicle Plate

reddot winner 2021
cascella description

1

2

3

4

CONTOURING

Plate prepared to allow for additional contouring

COMPRESSION HOLE

For interfragmentary compression where needed

TIC™ HOLES

Variable angle locking holes (15° angulation)

KIRSCHNER WIRE HOLES

For preliminary plate fixation

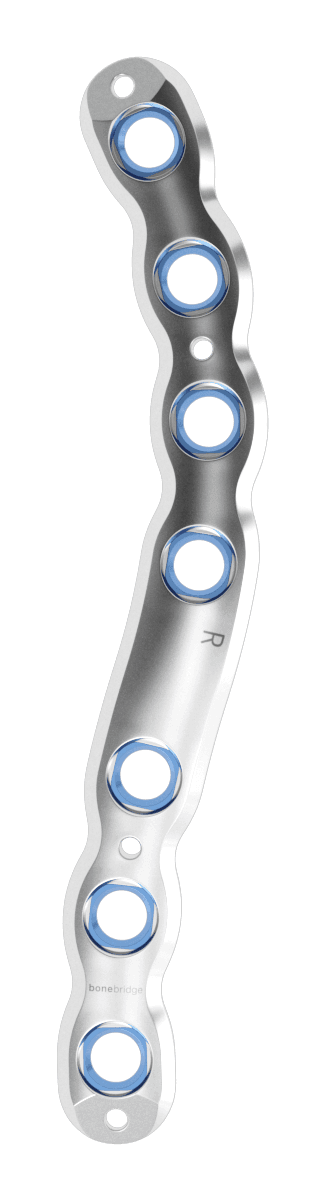

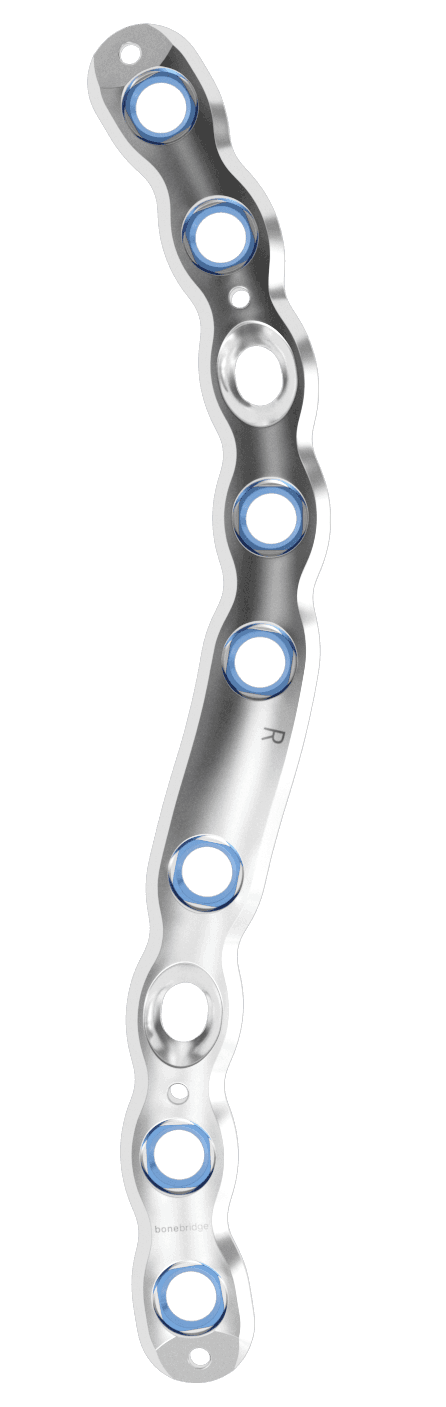

THE CASCELLA®

plate

7 Hole | 92mm length

plate

9 Hole | 115mm length

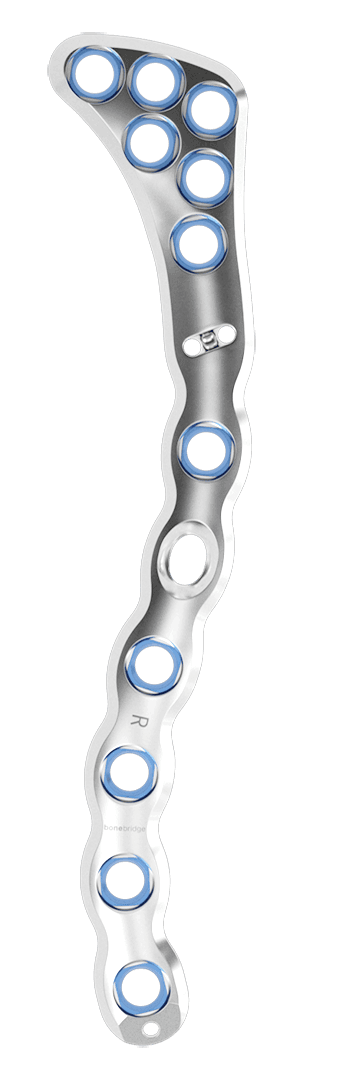

THE CASCELLA® LATERAL

plate

Lateral 9 Hole | 75mm length

plate

Lateral 12 Hole | 110mm length

“The Cascella clavicle plate is a perfect example for a successful application of reducing complexity – the core philosophy of Bonebridge. The handling is easy for the surgeon but for the nurse as well. Younger surgeons in our hospital are excited using the Cascella plate because of its optimal shape, which fits almost every clavicle and the simplicity of the system. Reducing complexity is - I hope - the future in orthopaedic trauma implants.”

Philipp F. Stillhard M.D.

Senior Consultant, Department of Surgery,

Kantonsspital Graubünden, Chur, Switzerland

bridge

15° ANGULATION

src

The TIC™ VA-locking technology offers maximum flexibility when placing the Bonebridge 3.5mm VA-locking screws. Thanks to the holes’ titanium inlays a 15° angulation is possible in any direction while maintaining constant stability.

ANATOMICAL SHAPE

src

The anatomy of the clavicle is highly variable. The shape of the CASCELLA plates was designed based on an extensive 3D database to account for the challenging geometry of the clavicle.

SMART SHAPE TWO SIZES

src

To reduce complexity and keep the product as simple as possible, only two sizes exist for both - the clavicle shaft as well as the lateral clavicle - while still covering a large range of clavicle fractures.

15° ANGULATION

The TIC™ VA-locking technology offers maximum flexibility when placing the Bonebridge 3.5mm VA-locking screws. Thanks to the holes’ titanium inlays a 15° angulation is possible in any direction while maintaining constant stability.

ANATOMICAL SHAPE

The anatomy of the clavicle is highly variable. The shape of the CASCELLA plates was designed based on an extensive 3D database to account for the challenging geometry of the clavicle.

SMART SHAPE TWO SIZES

To reduce complexity and keep the product as simple as possible, only two sizes exist for both - the clavicle shaft as well as the lateral clavicle - while still covering a large range of clavicle fractures.

THE CASCELLA 3.5MM INSTRUMENT SET

toolstoolstoolstoolstoolstoolstoolstoolstoolstoolstoolstoolstoolstools
slide-img

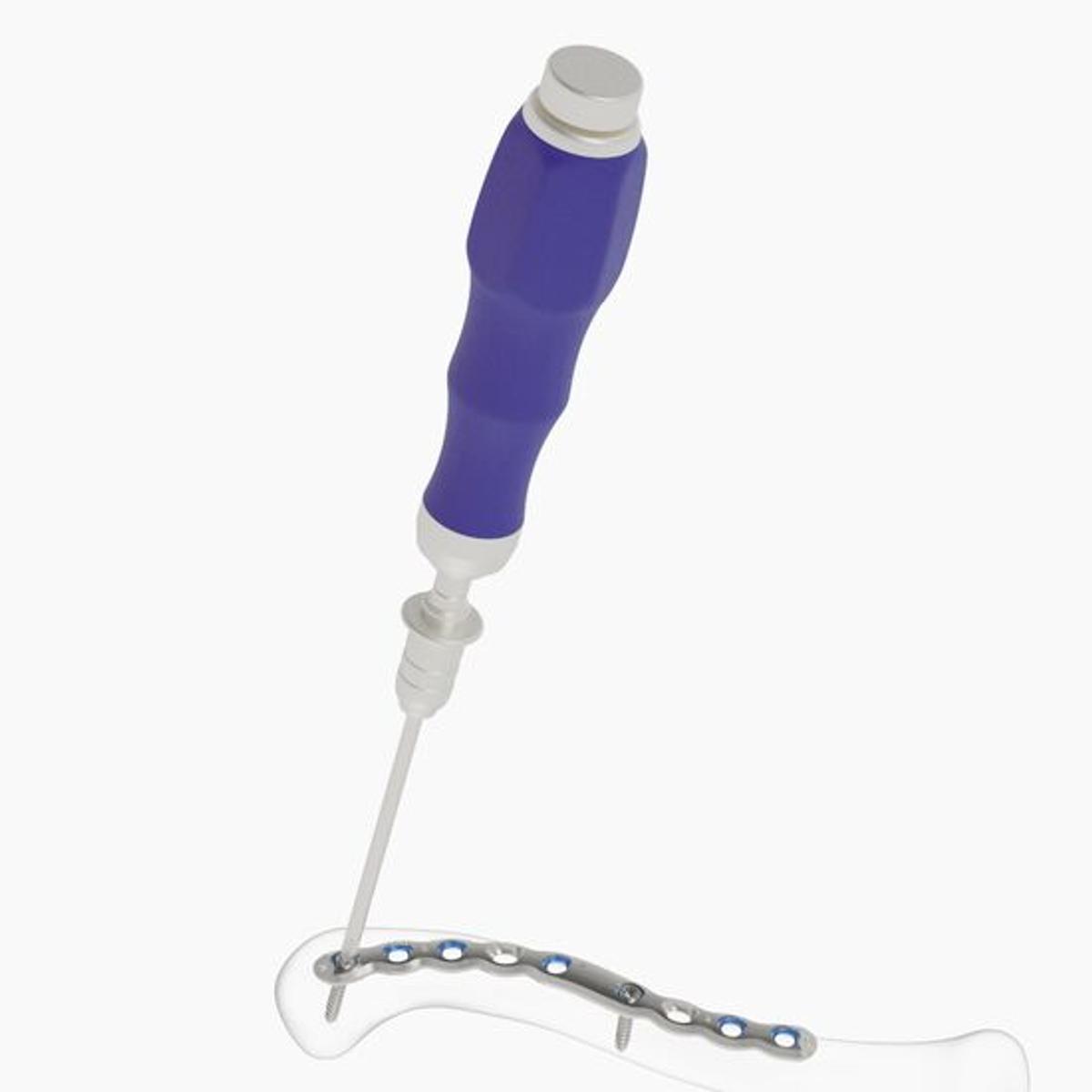

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

POWER TOOL TL ATTACHMENT Ø3.5MM

Torque limiter attachment connects with a power tool and exchangeable bit for final tightening of 3.5mm VA Locking Screws.

slide-img

EXCHANGEABLE BIT Ø3.5MM, 100MM & 180MM

The exchangeable bit has a tapered star-shaped tip for screw attachment with self-retaining capacity. It accepts both the 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL BIT Ø2.8MM, 120MM & 220MM

Only one drill bit (ø2.8mm) is required for both the 3.5mm Cortical screws and 3.5mm VA Locking screws. The drill bit is available in two lengths (120mm & 220mm).

slide-img

K-WIRE Ø1.8MM, 250MM

Used for preliminary fixation of fracture reduction and temporary fixation of the plate.

slide-img

DEPTH GAUGE Ø3.5MM

Screw measurement instrument for 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL GUIDE Ø3.5MM

Drill guide to be used with 3.5mm Cortical and 3.5mm VA Locking screws. The variable angle cone allows for up to 15° of angulation. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

MONOAXIAL DRILL GUIDE Ø3.5MM

Straight drill guide for drilling of 3.5mm screw holes. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

TIC COMPRESSION DRILL GUIDE Ø3.5MM

Interfragmentary compression (0.6mm) within a TIC hole is possible with this instrument by enabling pilot hole drilling in the eccentric position. A tactile ‘click’ confirms connection to the TIC hole and includes a self-retaining feature.

slide-img

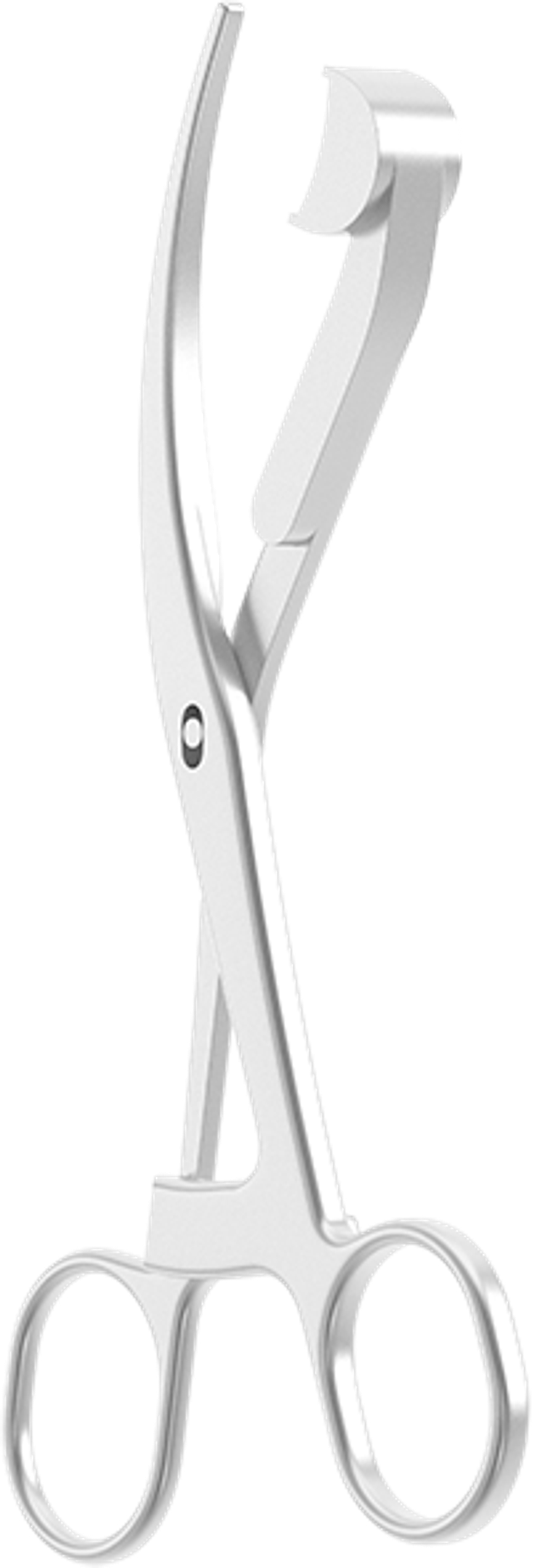

PLATE HOLDING AND REDUCTION CLAMP CLAVICLE

Maintains the CASCELLA plate position and fracture reduction during the preparation of screw insertion.

slide-img

CASCELLA TRIAL IMPLANT 7H / 9H

Allows for accurate selection of CASCELLA plate length.

slide-img

BENDING IRON

Used for plate contouring when minor adaptions are required to match patient anatomy.

  • 3.5MM SCREWS

    screw1screw2
    slide-img
  • Variable Angle Locking Screws

    Thanks to the TIC™-technology our 3.5mm Variable Angle Locking Screws can be locked with an audible click to the TIC™-Screw holes. Using the same diameter as the Cortical Screws only one screw driver is necessary in the OR. For the CASCELLA plates, the VA Locking Screws are available in sizes from 10-30mm with an increment of 2mm.

    slide-img
  • Cortical Screws

    Thanks to a consistent diameter throughout the system, our 3.5mm Cortical Screws can be placed in all TIC™-Screw holes. For the CASCELLA plates, the Cortical Screws are available in sizes from 10-30mm with an increment of 2mm.
