LEPORELLO®
3.5mm Olecranon System

LEPORELLO®

3.5mm Olecranon System

LeporelloLeporello

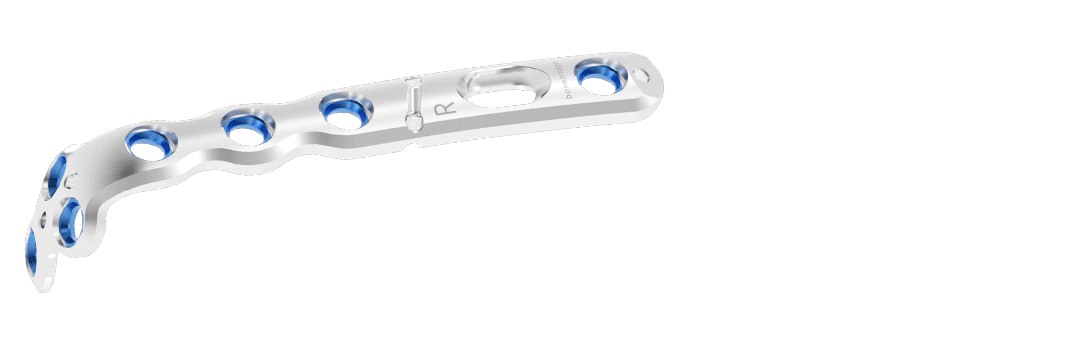

The LEPORELLO®3.5mm Olecranon Plate

leporello description

1

2

3

4

5

KIRSCHNER WIRE HOLES

For preliminary plate fixation

PRE-CONTOURED SHAPE

To optimally fit the olecranon

TIC™ HOLES

Variable angle locking holes (15° angulation)

SUTURE HOLE

For the attachment of sutures and tension-band application

OBLONG HOLE

Allowing precise positioning of the plate and interfragmentary compression

THE LEPORELLO®

plate

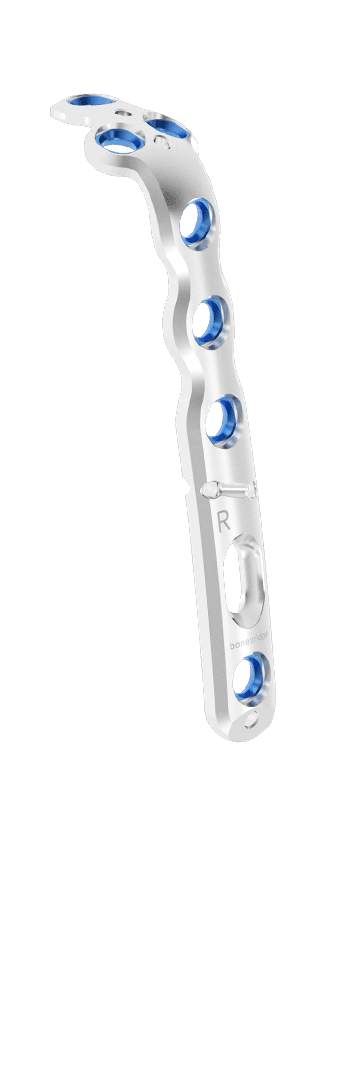

5 Hole | 81mm length

plate

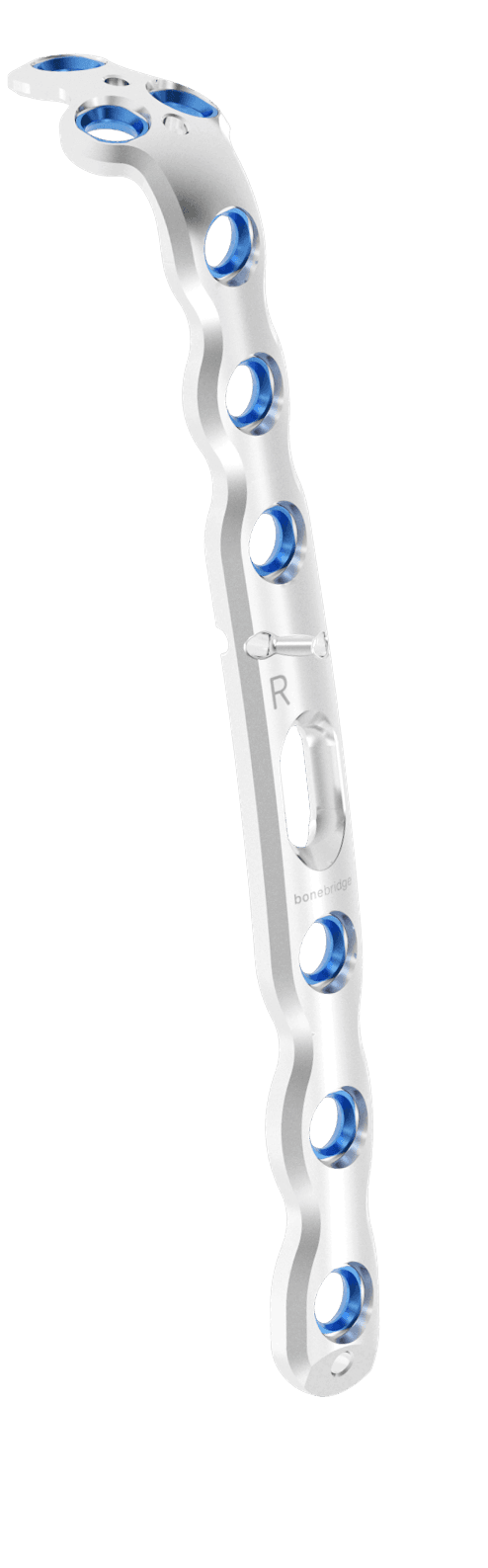

9 Hole | 143mm length

“The Leporello proximal ulna plates reduce complexity in fracture treatment by their excellent anatomical fit and by incorporating the advantages of tension-band wiring into the plate design. The two plate variants cover all complex olecranon and monteggia-like proximal ulna fractures.”

Christian Spross M.D.

Senior Consultant and Deputy Head of Shoulder and Elbow Surgery, Department of Orthopaedics and Traumatology,

Kantonsspital St. Gallen, Switzerland.

bridge

ADAPT WITH EASE

src

The implant provides a low profile design with a carefully considered curvature, allowing for the adaptation to the proximal aspect of the ulna and the shaft. The most proximal hole is easily bendable should further contouring be required.

BIPLANAR FIXATION

src

The proximal screw holes allow the placement of a maximum of three screws adjacent to the joint line. Two of these screws may be placed divergently. One or more shaft screws may then be placed rectangularly between them to allow for a true bi-planar fixation.

REDUCE AND COMPRESS

src

Suture holes are positioned on the plate to enable application of the tension band technique to the olecranon. Additionally, the most proximal K-wire hole may be used in combination with a cortical screw in the oblong hole, in order to apply inter-fragmentary compression.

ADAPT WITH EASE

The implant provides a low profile design with a carefully considered curvature, allowing for the adaptation to the proximal aspect of the ulna and the shaft. The most proximal hole is easily bendable should further contouring be required.

BIPLANAR FIXATION

The proximal screw holes allow the placement of a maximum of three screws adjacent to the joint line. Two of these screws may be placed divergently. One or more shaft screws may then be placed rectangularly between them to allow for a true bi-planar fixation.

REDUCE AND COMPRESS

Suture holes are positioned on the plate to enable application of the tension band technique to the olecranon. Additionally, the most proximal K-wire hole may be used in combination with a cortical screw in the oblong hole, in order to apply inter-fragmentary compression.

IF YOU HAVE ANY QUESTIONS ABOUT A CASE PLEASE GET IN TOUCH WITH US!

THE LEPORELLO 3.5MM INSTRUMENT SET

toolstoolstoolstoolstoolstoolstoolstoolstoolstoolstools
slide-img

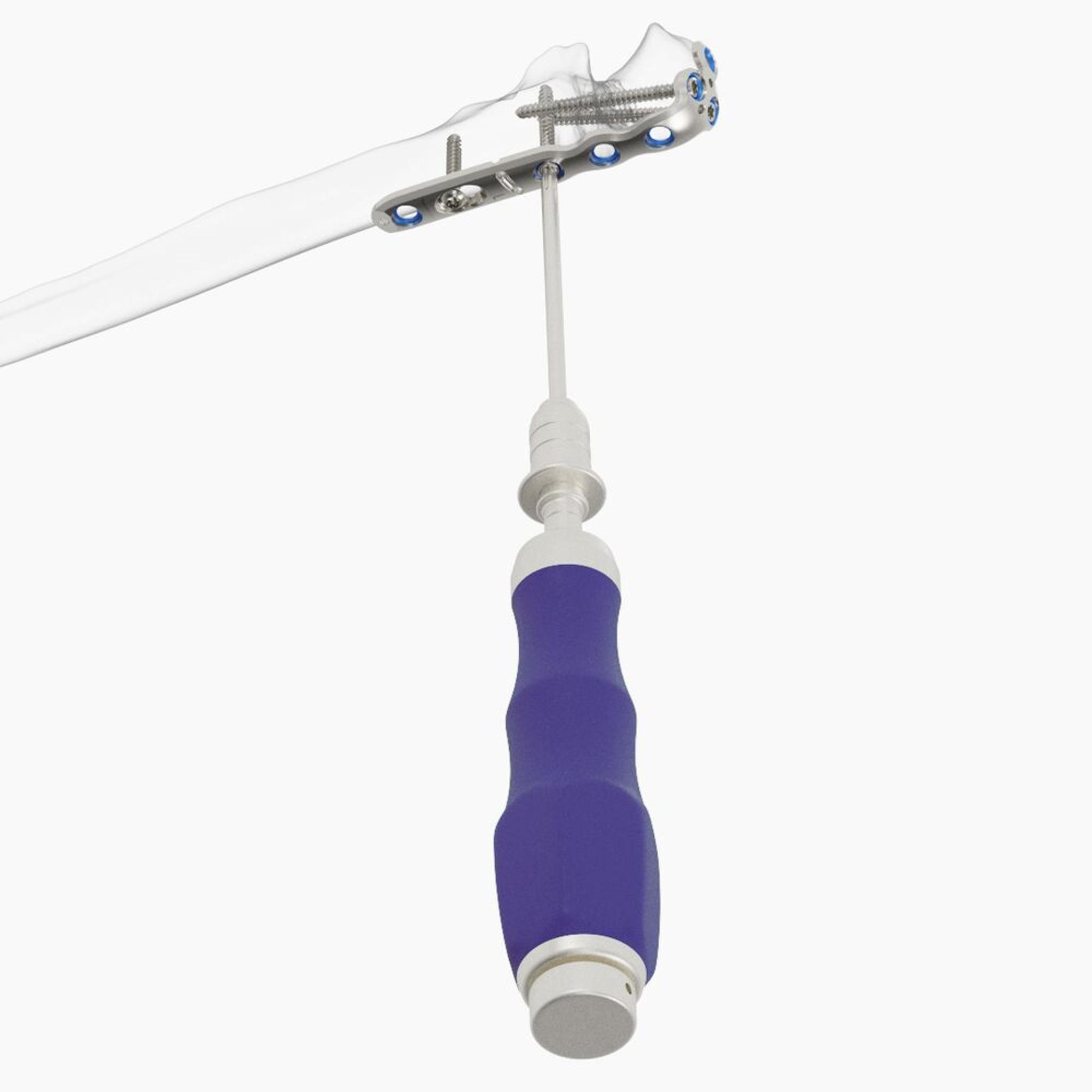

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

POWER TOOL TL ATTACHMENT Ø3.5MM

Torque limiter attachment connects with a power tool and exchangeable bit for final tightening of 3.5mm VA Locking Screws.

slide-img

EXCHANGEABLE BIT Ø3.5MM, 100MM & 180MM

The exchangeable bit has a tapered star-shaped tip for screw attachment with self-retaining capacity. It accepts both the 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL BIT Ø2.8MM, 120MM & 220MM

Only one drill bit (ø2.8mm) is required for both the 3.5mm Cortical screws and 3.5mm VA Locking screws. The drill bit is available in two lengths (120mm & 220mm).

slide-img

K-WIRE Ø1.8MM, 250MM

Used for preliminary fixation of fracture reduction and temporary fixation of the plate.

slide-img

DEPTH GAUGE Ø3.5MM

Screw measurement instrument for 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL GUIDE Ø3.5MM

Drill guide to be used with 3.5mm Cortical and 3.5mm VA Locking screws. The variable angle cone allows for up to 15° of angulation. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

MONOAXIAL DRILL GUIDE Ø3.5MM

Straight drill guide for drilling of 3.5mm screw holes. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

BENDING IRON

Used for plate contouring when minor adaptions are required to match patient anatomy.

  • 3.5MM SCREWS

    screw1screw2
    slide-img
  • Variable Angle Locking Screws

    Thanks to the TIC™-technology our 3.5mm Variable Angle Locking Screws can be locked with an audible click to the TIC™-Screw holes. Using the same diameter as the Cortex Screws only one screw driver is necessary in the OR. For the LEPORELLO plates, the VA Locking Screws are available in lengths from 10-60mm with an increment of 2mm.

    slide-img
  • Cortex Screws

    Thanks to a consistent diameter throughout the system, our 3.5mm Cortex Screws can be placed in all TIC™-Screw holes. For the LEPORELLO plates, the Cortex Screws are available in lengths from 10-60mm with an increment of 2mm for screw lengths up to 50mm and an icrement of 5mm until 60mm.
