TAMINA® & TAMINA® TF
3.5mm Proximal Humerus System

TAMINA® & TAMINA® TF

3.5mm Proximal Humerus System

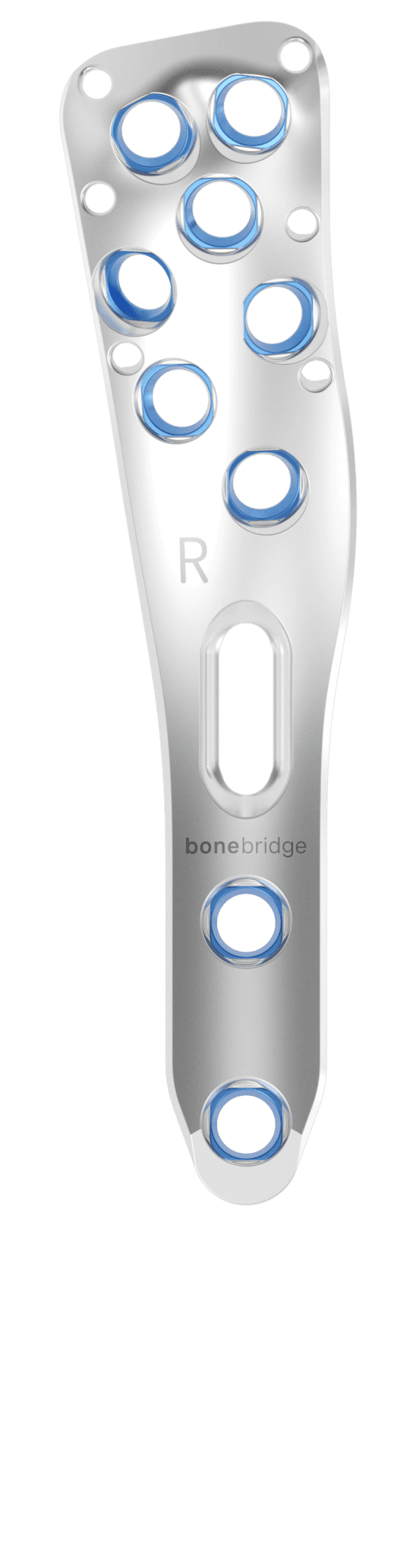

Tamina nowingsTamina nowings

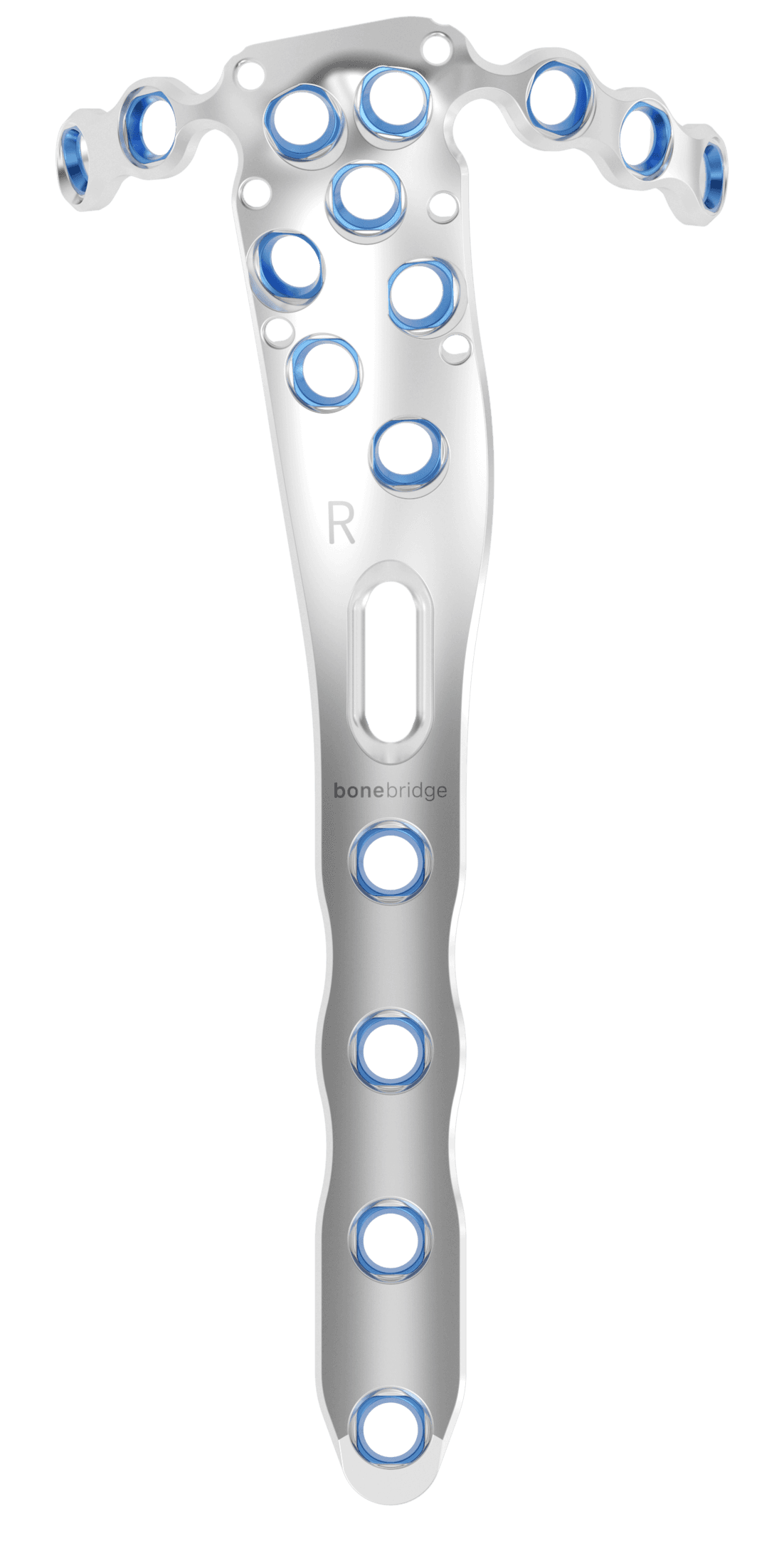

The TAMINA®TF 3.5mm Proximal Humerus Plate

tamina description

1

2

3

4

5

6

7

TUBERCULAR ARMS

For the greater and lesser tuberosity

SUTURE HOLES

For attachment of sutures

CALCAR VA-SCREW HOLES

Using the TIC™ variable angle locking technology

KIRSCHNER WIRE HOLES

For preliminary plate fixation

PRECONTOURED SHAPE

To adjust for valgus deformation

OBLONG HOLE

Allowing precise positioning of the plate

TIC™ HOLES

Variable angle locking holes (15° angulation)

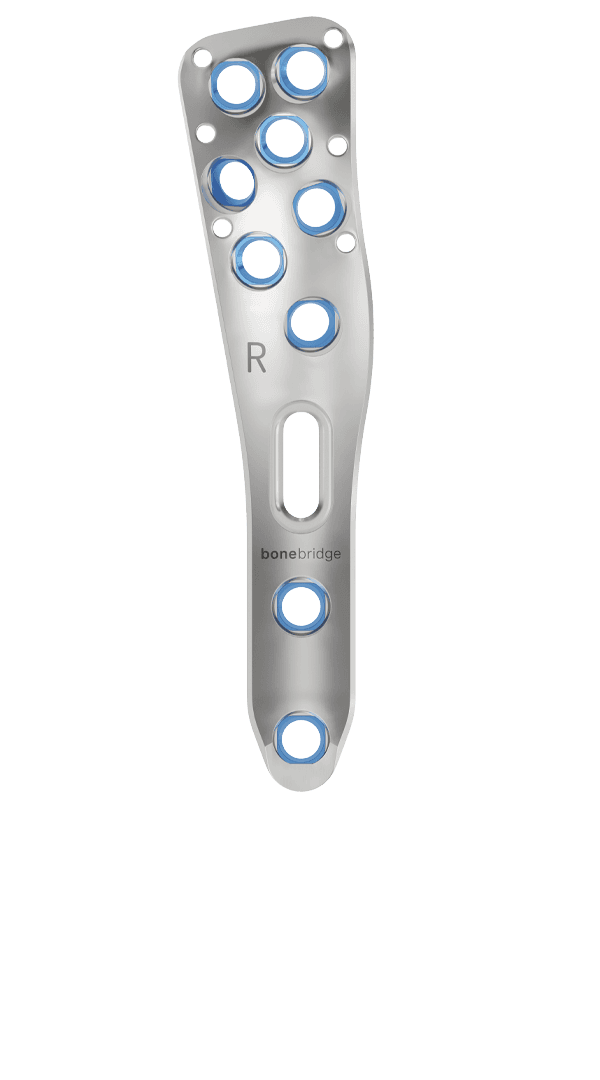

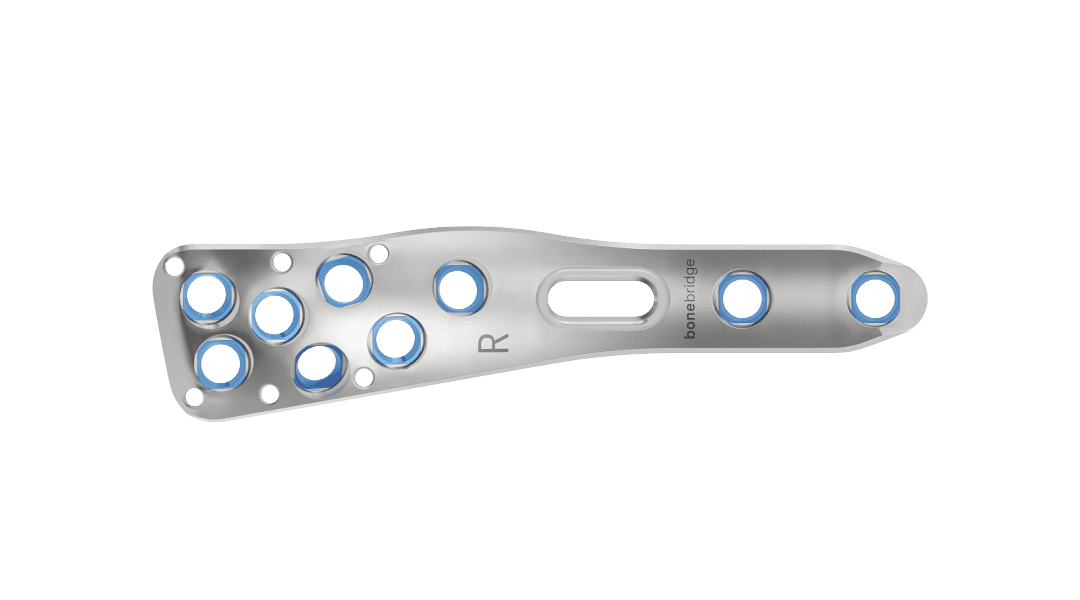

THE TAMINA®

plate

5 Hole | 117mm length

plate

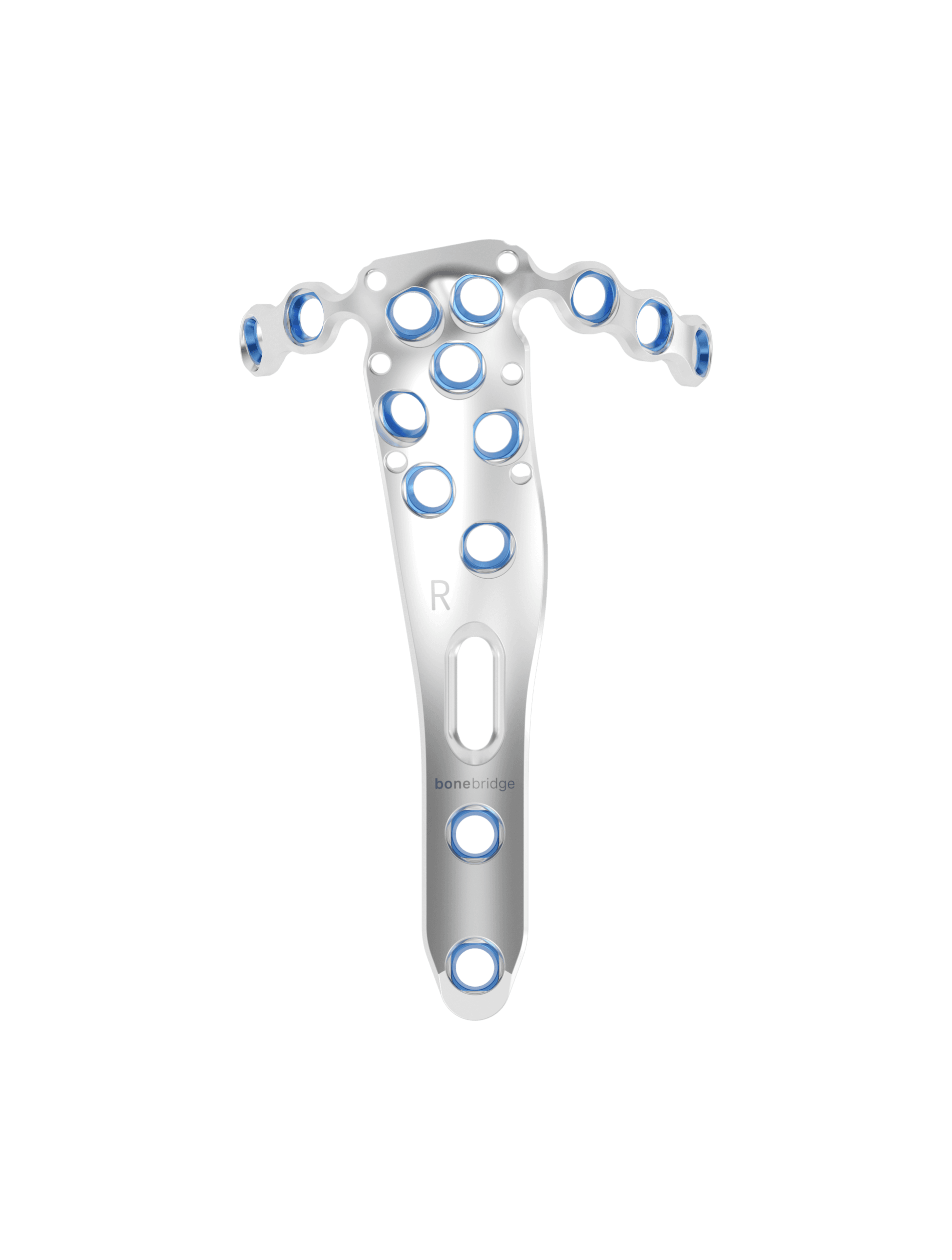

3 Hole | 87mm length

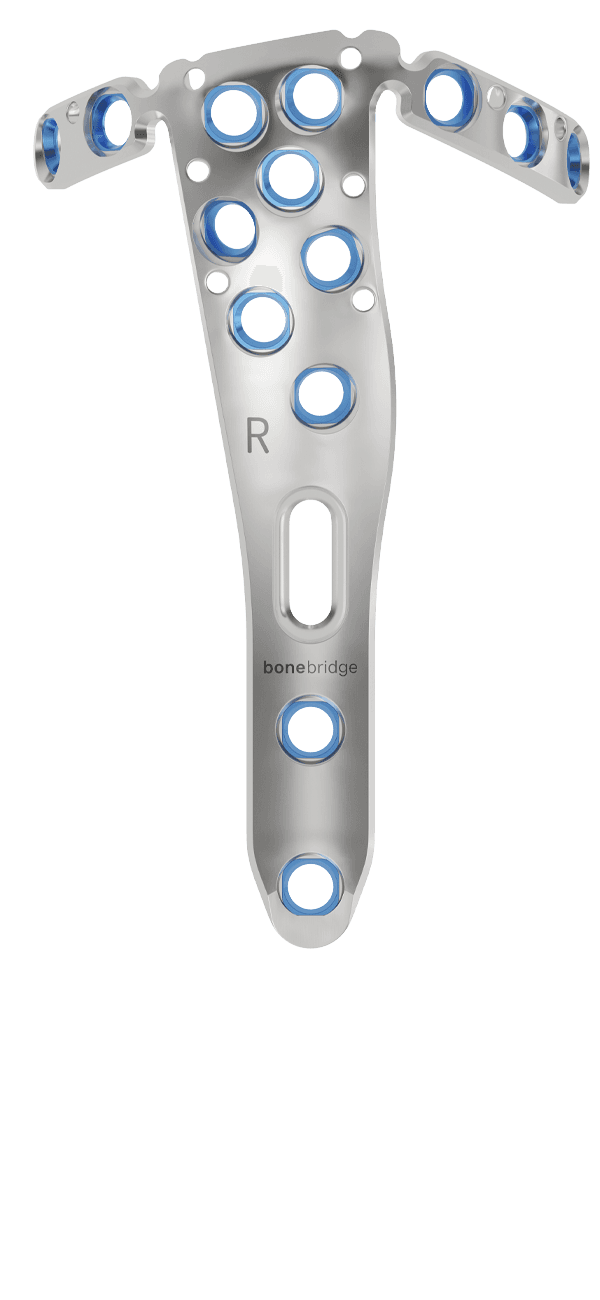

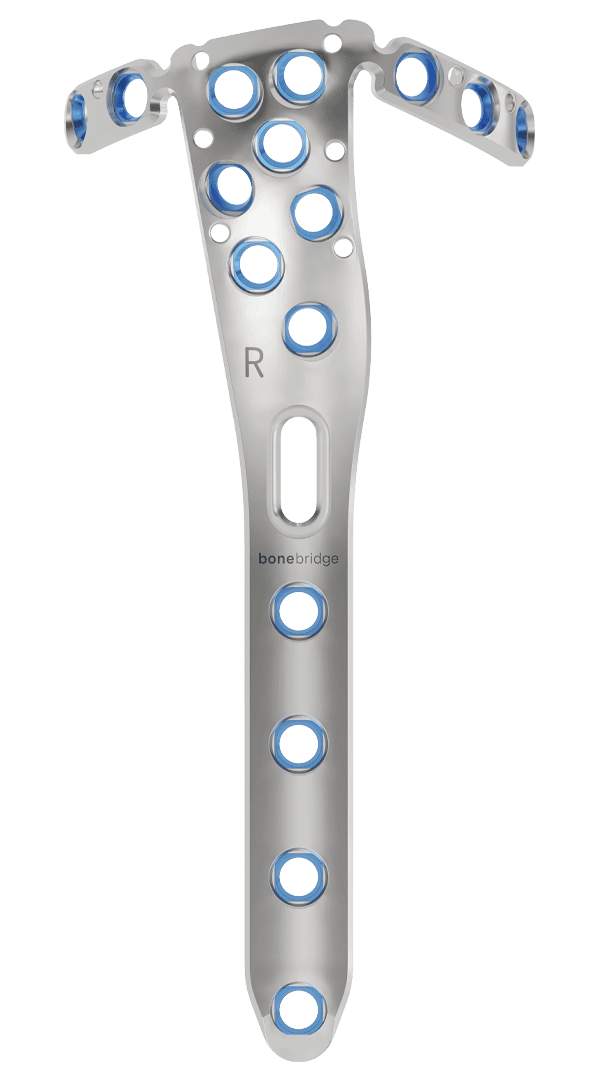

THE TAMINA® TF

plate

5 Hole | 117mm length

plate

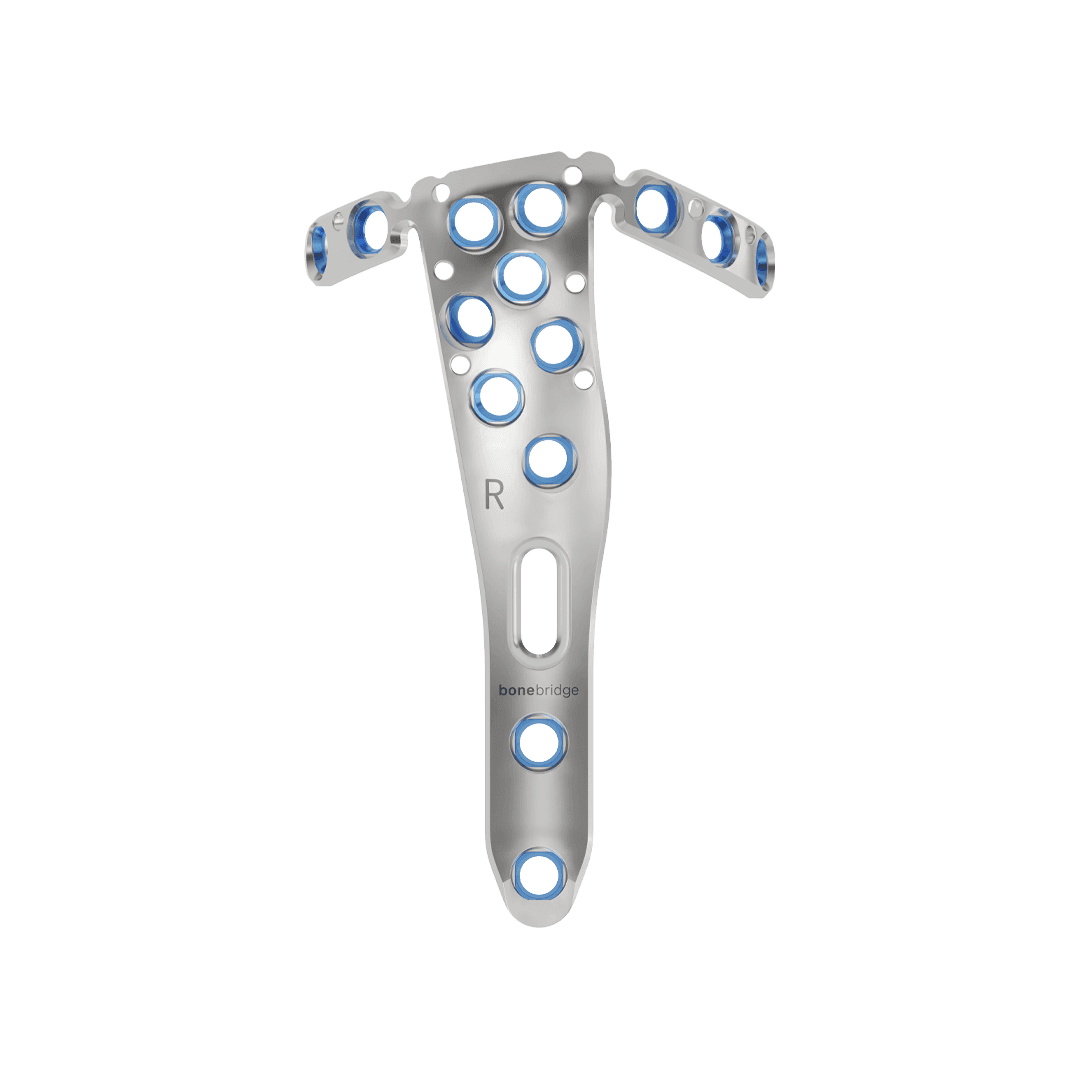

3 Hole | 87mm length

“The Tamina TF proximal humerus plate is not just another angular stable implant, rather it introduces a new concept for the treatment of complex proximal humerus fractures. The tubercular arms allow an ideal positioning of the polyaxial screws in relation to the lesser and greater tuberosities as well as to the humeral head. In our experience this increases the stability of the reconstruction and thus the probability of success in these challenging fractures.”

Detail.professorName

Head of the Department of Orthopaedics,

Spital Nidwalden, Stans, Switzerland

bridge

DIRECT TUBEROSITY FIXATION

src

The TAMINA TF (Tubercular Fixation) Plate offers an improved approach to ORIF of three- and four-part proximal humerus fractures. The plate is designed to allow for direct stabilization of the head fragment and both tuberosities. The anatomically designed arms for the lesser and greater tuberosity assist in accuracy of reduction, allow for direct tuberosity fixation and the creation of a multiplanar screw construct for retention of the fracture reduction.

OPTIMIZED SHAPE

src

The plate offers a varus-avoiding shaft-metaphysis design to prevent secondary varus dislocation of the humeral head. Furthermore, all holes enable variable angle screw positioning, permitting tailored placement of all screws depending on the specific fracture pattern.

SIMPLE AND STANDARD

src

In addition to the TAMINA TF the TAMINA standard plate is a versatile proximal humerus plate for open reduction and internal fixation of simple proximal humerus fractures.

DIRECT TUBEROSITY FIXATION

The TAMINA TF (Tubercular Fixation) Plate offers an improved approach to ORIF of three- and four-part proximal humerus fractures. The plate is designed to allow for direct stabilization of the head fragment and both tuberosities. The anatomically designed arms for the lesser and greater tuberosity assist in accuracy of reduction, allow for direct tuberosity fixation and the creation of a multiplanar screw construct for retention of the fracture reduction.

OPTIMIZED SHAPE

The plate offers a varus-avoiding shaft-metaphysis design to prevent secondary varus dislocation of the humeral head. Furthermore, all holes enable variable angle screw positioning, permitting tailored placement of all screws depending on the specific fracture pattern.

SIMPLE AND STANDARD

In addition to the TAMINA TF the TAMINA standard plate is a versatile proximal humerus plate for open reduction and internal fixation of simple proximal humerus fractures.

THE TAMINA 3.5MM INSTRUMENT SET

toolstoolstoolstoolstoolstoolstoolstoolstoolstoolstoolstoolstools
slide-img

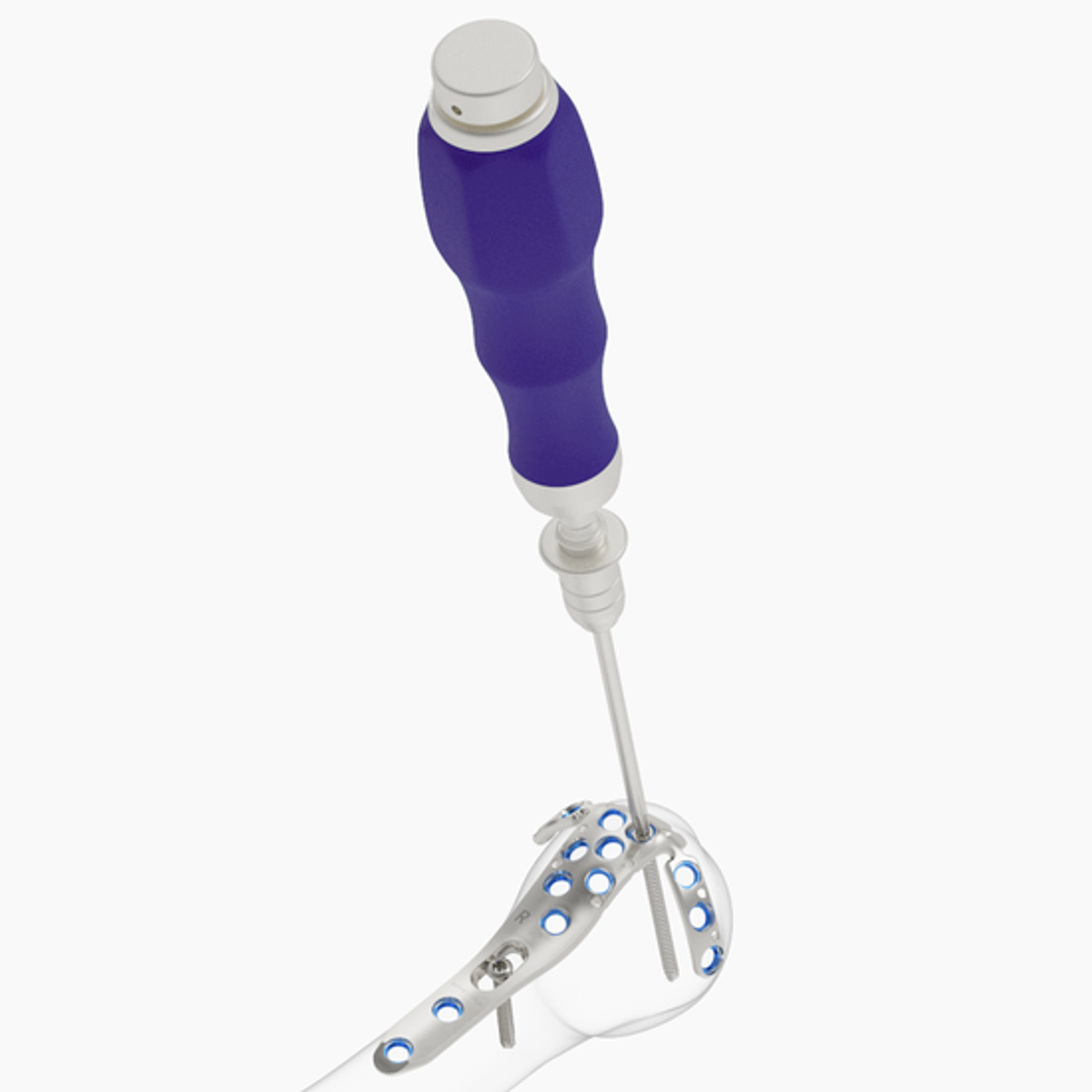

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

TORQUE LIMITING SCREWDRIVER HANDLE Ø3.5MM

Provides a tactile and audible ‘click’ to confirm final tightening of 3.5mm VA Locking screws.

slide-img

POWER TOOL TL ATTACHMENT Ø3.5MM

Torque limiter attachment connects with a power tool and exchangeable bit for final tightening of 3.5mm VA Locking Screws.

slide-img

EXCHANGEABLE BIT Ø3.5MM, 100MM & 180MM

The exchangeable bit has a tapered star-shaped tip for screw attachment with self-retaining capacity. It accepts both the 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

EXCHANGEABLE BIT Ø3.5MM, 100MM & 180MM

The exchangeable bit has a tapered star-shaped tip for screw attachment with self-retaining capacity. It accepts both the 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL BIT Ø2.8MM, 120MM & 220MM

Only one drill bit (ø2.8mm) is required for both the 3.5mm Cortical screws and 3.5mm VA Locking screws. The drill bit is available in two lengths (120mm & 220mm).

slide-img

K-WIRE Ø1.8MM, 250MM

Used for preliminary fixation of fracture reduction and temporary fixation of the plate.

slide-img

DEPTH GAUGE Ø3.5MM

Screw measurement instrument for 3.5mm Cortical Screws and 3.5mm VA Locking Screws.

slide-img

DRILL GUIDE Ø3.5MM

Drill guide to be used with 3.5mm Cortical and 3.5mm VA Locking screws. The variable angle cone allows for up to 15° of angulation. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

MONOAXIAL DRILL GUIDE Ø3.5MM

Straight drill guide for drilling of 3.5mm screw holes. A tactile ‘click’ confirms connection to the TIC hole and is self-retaining.

slide-img

BENDING STICK Ø3.5MM

Bending sticks specifically designed for in-situ bending of the tubercular arms on the TAMINA TF plate.

slide-img

PROTECTION SLEEVE Ø3.5MM

Tissue protecting sleeve for percutaneous screw insertion.

slide-img

PROTECTION SLEEVE DRILL INSERT Ø3.5MM

Tissue protecting sleeve insert for percutaneous drilling.

  • 3.5MM SCREWS

    screw1screw2
    slide-img
  • Variable Angle Locking Screws

    Thanks to the TIC™-technology our 3.5mm Variable Angle Locking Screws can be locked with an audible click to the TIC™-Screw holes. Using the same diameter as the Cortical Screws only one screw driver is necessary in the OR. For the TAMINA plates, the VA Locking Screws are available in lengths from 20-60mm with an increment of 2mm.

    slide-img
  • Cortical Screws

    Thanks to a consistent diameter throughout the system, our 3.5mm Cortical Screws can be placed in all TIC™-Screw holes. For the TAMINA plates, the Cortical Screws are available in lengths from 20-36mm with an increment of 2mm.
